1069561

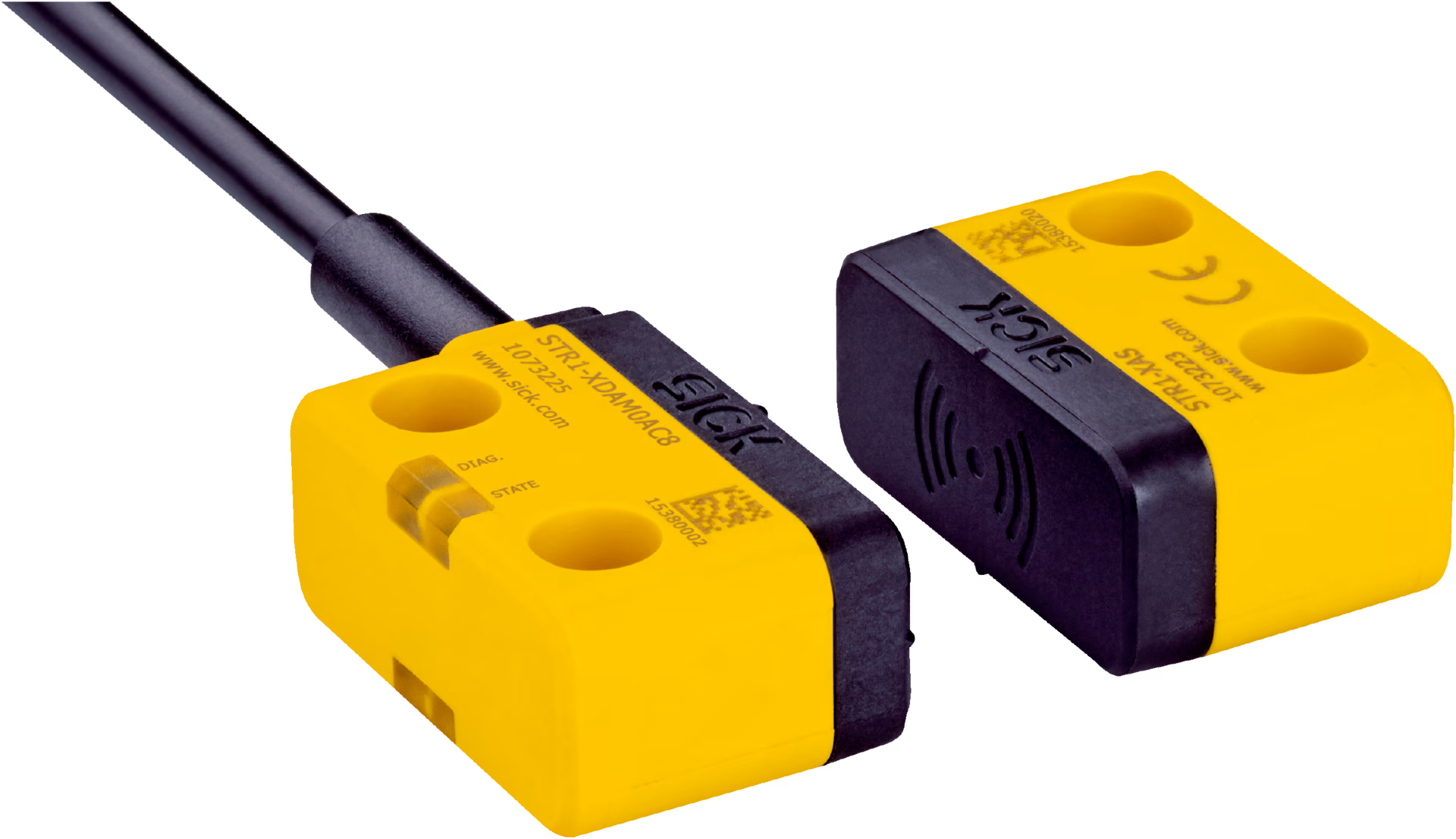

SICK 1069561 / STR1-SASM0AC8 is a safety switche in the STR1 family. Actuator design: Standard; Coding: Universally coded; Assured switch on distance Sao: 10 mm; Connection type Detail: Cable with plug M12, 8-pin; Length of cable: 0.2 m; Safe series connection: With T-connector (without diagnostics), with Flexi Loop (with diagnostics); Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs).

Manufacturer

Sick

Part number

1069561

Product family

STR1

Category

Safety switches

Technical details

Sensor principle: RFID; Supply voltage Vs: 24 V DC (19.2 V DC... 28.8 V DC); Response time: 40 ms; Dimensions (W x H x D): 40 mm x 18 mm x 26 mm; Connection type: Cable with plug M12, 8-pin; Enclosure rating: IP67 (IEC 60529); IP69K (ISO 20653); Housing material: VISTAL®; Ambient operating temperature: –30 °C... +70 °C; Weight: 82 g; System part: Sensor with actuator; Number of safe outputs: 2; Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs); Assured switch on distance Sao: 10 mm (–30 °C... +70 °C); Assured switch off distance Sar: 25 mm

Weight

0.082 kg

Dimensions

40 x 18 x 26
