1068333

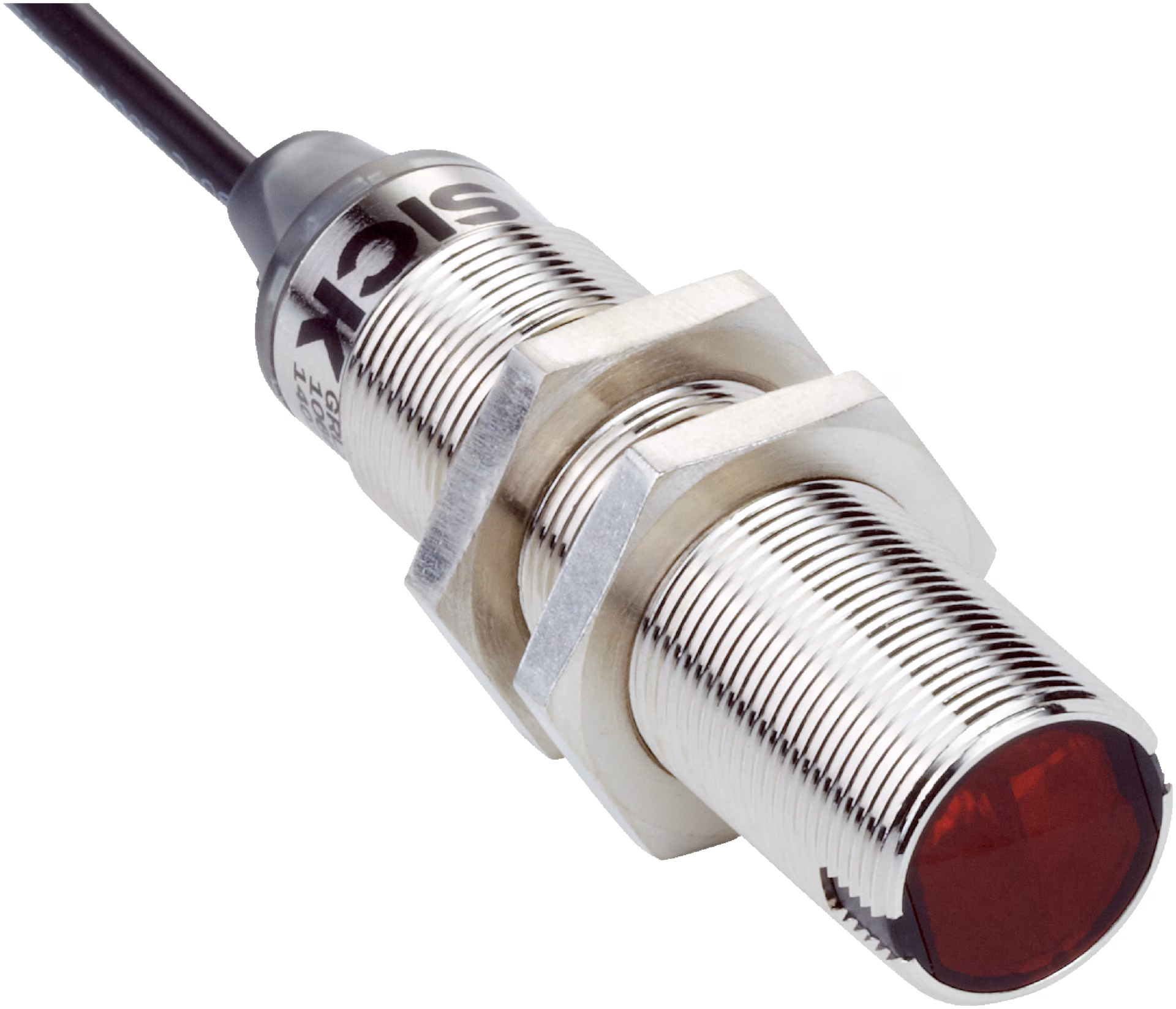

SICK 1068333 / GRSE18-P1122 is a photoelectric sensor in the GR18 family. Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable, 4-wire, 2 m; Light source: LED; Adjustment: Potentiometer; Communication interface: -; Included with delivery: Fastening nuts (4 x).

Manufacturer

Sick

Part number

1068333

Product family

GR18

Category

Photoelectric sensors

Technical details

Type of light: Infrared light; Sensing range max.: 0 m... 15 m; Sensing range: 0 m... 10 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: < 500 µs; Dimensions (W x H x D): 18 mm x 18 mm x 71.5 mm; Connection type: Cable, 4-wire, 2 m; Enclosure rating: IP67; Housing material: Metal, Nickel-plated brass and ABS; Ambient operating temperature: –25 °C... +55 °C; Functional principle: Through-beam photoelectric sensor; Housing design (light emission): Cylindrical; Thread diameter (housing): M18 x 1

Dimensions

18 x 18 x 71.5
