1068109

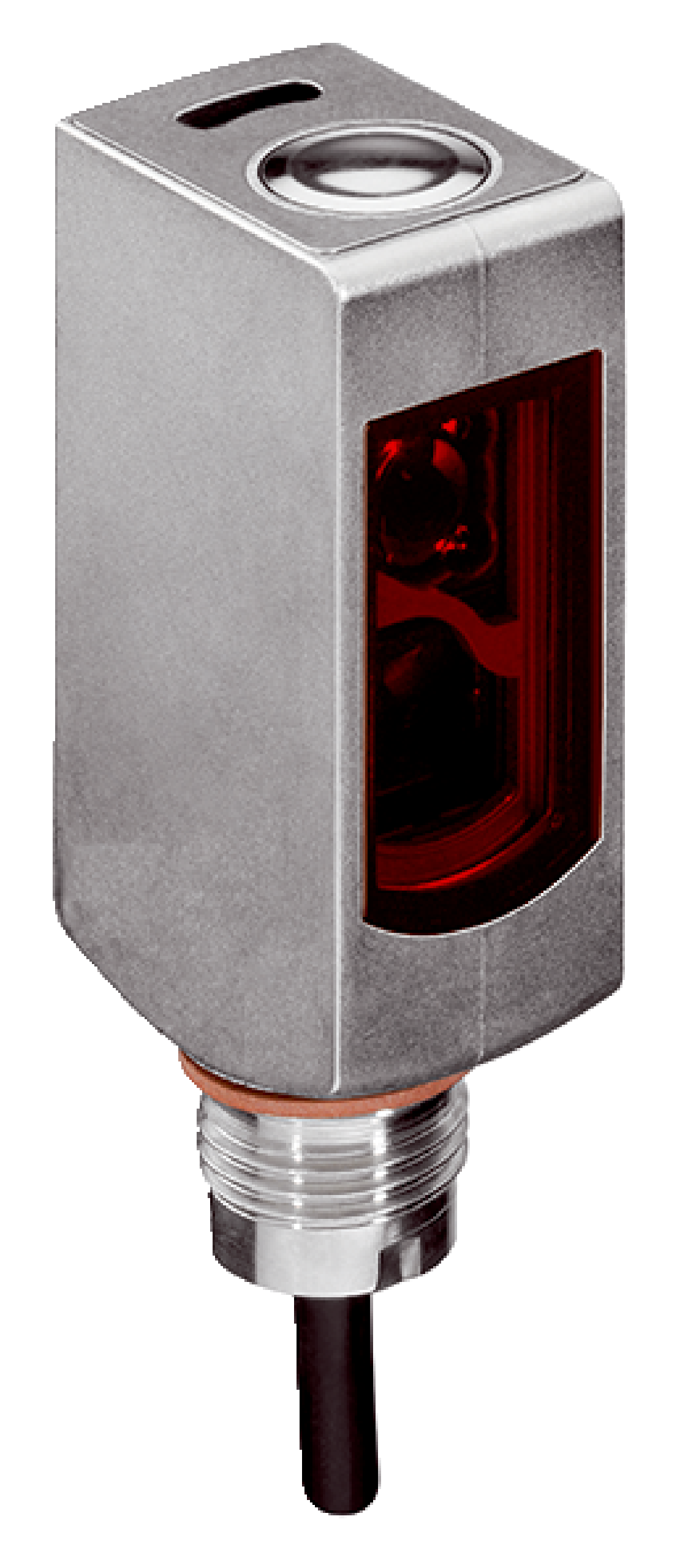

SICK 1068109 / WL4SLG-3P3232H is a photoelectric sensor in the W4 family. Sensing range max.: 0 m... 4.5 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable with M8 male connector, 4-pin; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: Stainless steel V4A (1.4404, 316L); Adjustment: Teach-in button; Housing: Rectangular.

Manufacturer

Sick

Part number

1068109

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 4.5 m;; Sensing range: 0 m... 2 m;; Supply voltage UB: 10 V DC... 30 V DC; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 15.3 mm x 63.2 mm x 22.2 mm; Enclosure rating: IP66; IP67; IP68; IP69K; Ambient operating temperature: –10 °C... +50 °C; Ambient operating temperature extended: –30 °C... +55 °C; Weight: 140 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Polarisation filter: Yes; Emitted beam: Light source Laser

Weight

0.14 kg

Dimensions

15.3 x 63.2 x 22.2

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
