1067767

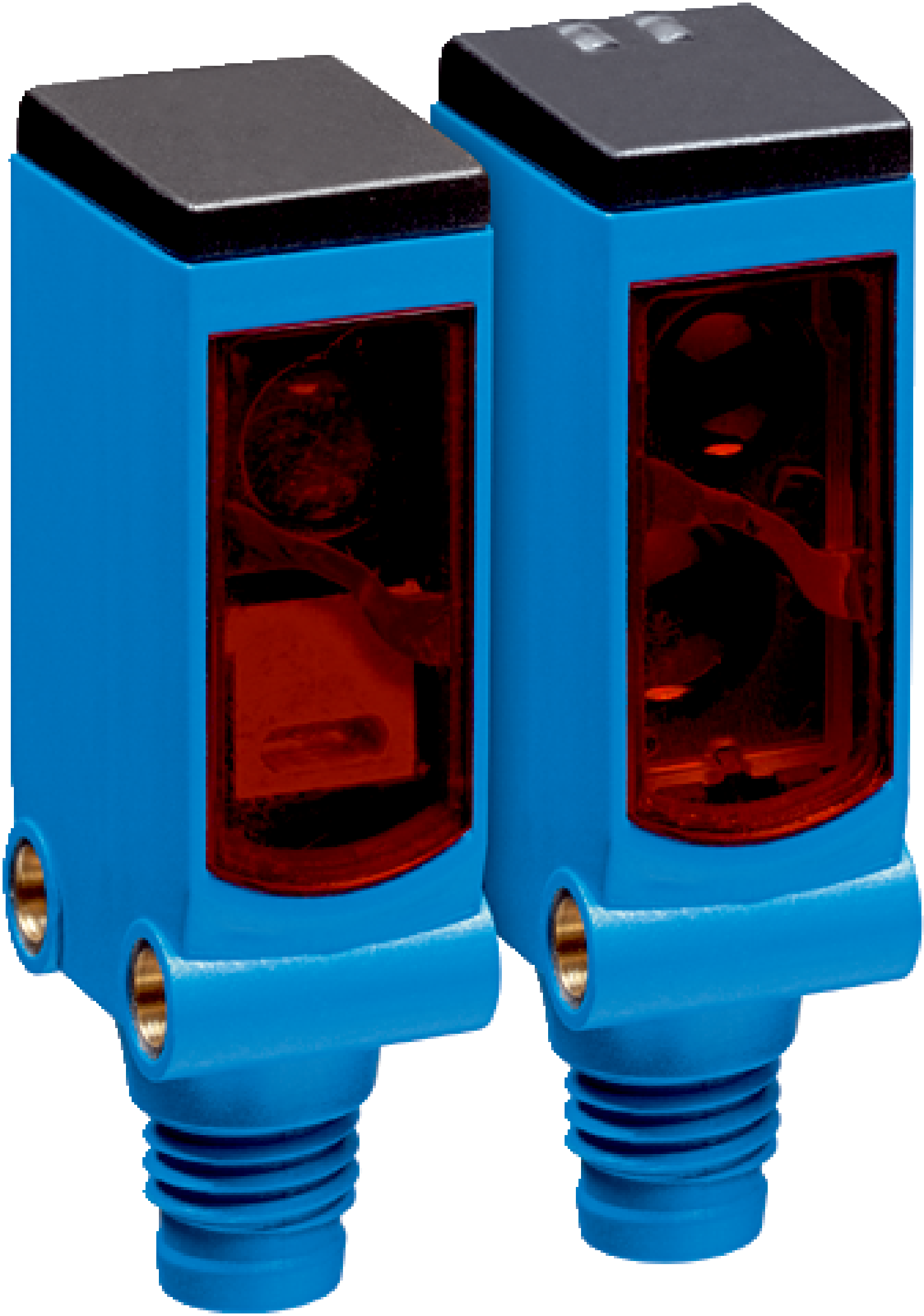

SICK 1067767 / WSE4SC-3P2230A00 is an archive in the W4 family. Photoelectric sensors; Sensing range max.: 0 m... 5 m; Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: ABS; Adjustment: IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1067767

Product family

W4

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 5 m; Sensing range: 0 m... 4.5 m; Supply voltage UB: 10 V DC... 30 V DC; Repeatability (response time): 150 µs; Response time Q/ on Pin 2: 300 µs... 450 µs; Response time: SIO Direct: 300 µs... 450 µs; SIO Logic: 500 µs... 600 µs; IOL: 500 µs... 900 µs; Repeatability: SIO Direct: 150 µs; SIO Logic: 150 µs; IOL: 400 µs; Dimensions (W x H x D): 12.2 mm x 41.8 mm x 17.3 mm; Enclosure rating: IP67; IP66; Ambient operating temperature: –40 °C... +60 °C; Weight: 40 g; Functional principle: Through-beam photoelectric sensor; Emitted beam: Light source PinPoint LED

Weight

0.04 kg

Dimensions

12.2 x 41.8 x 17.3
