1067758

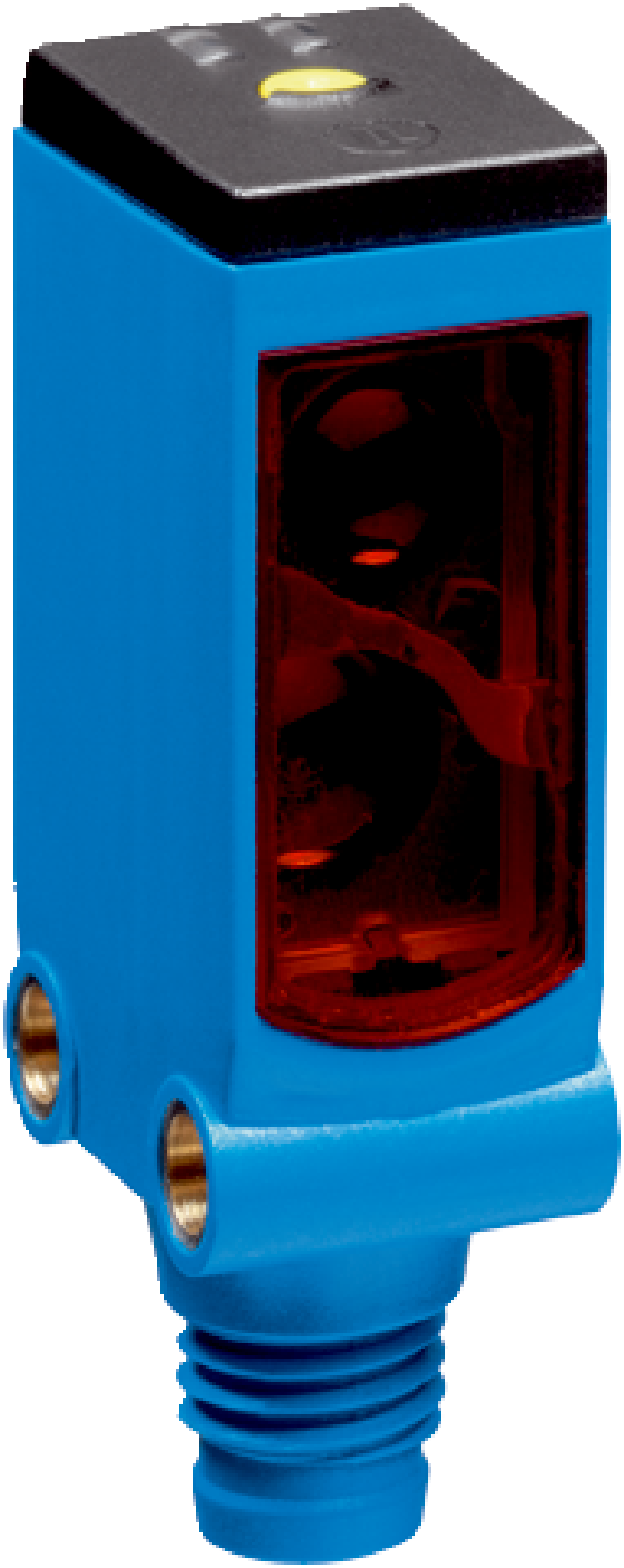

SICK 1067758 / WTB4SC-3P2262A91 is an archive in the W4 family. Photoelectric sensors; Sensing range max.: 4 mm... 180 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: ABS; Adjustment: IO-Link, Teach-in button; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Timestamp + debouncing; Housing: Rectangular.

Manufacturer

Sick

Part number

1067758

Product family

W4

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 4 mm... 180 mm; Sensing range: 10 mm... 180 mm; Supply voltage UB: 10 V DC... 30 V DC; Repeatability (response time): 150 µs; Response time Q/ on Pin 2: 300 µs... 450 µs; Response time: SIO Direct: 300 µs... 450 µs; SIO Logic: 800 µs... 950 µs; IOL: ---; Repeatability: SIO Direct: 150 µs; SIO Logic: 150 µs; IOL: ---; Time stamp accuracy: SIO Direct: ---; SIO Logic: ---; IOL: - 80... + 330 µs; Dimensions (W x H x D): 12.2 mm x 41.8 mm x 17.3 mm; Enclosure rating: IP67; IP66; Ambient operating temperature: –40 °C... +60 °C; Weight: 20 g; Functional principle: Photoelectric proximity sensor

Weight

0.02 kg

Dimensions

12.2 x 41.8 x 17.3
