1067043

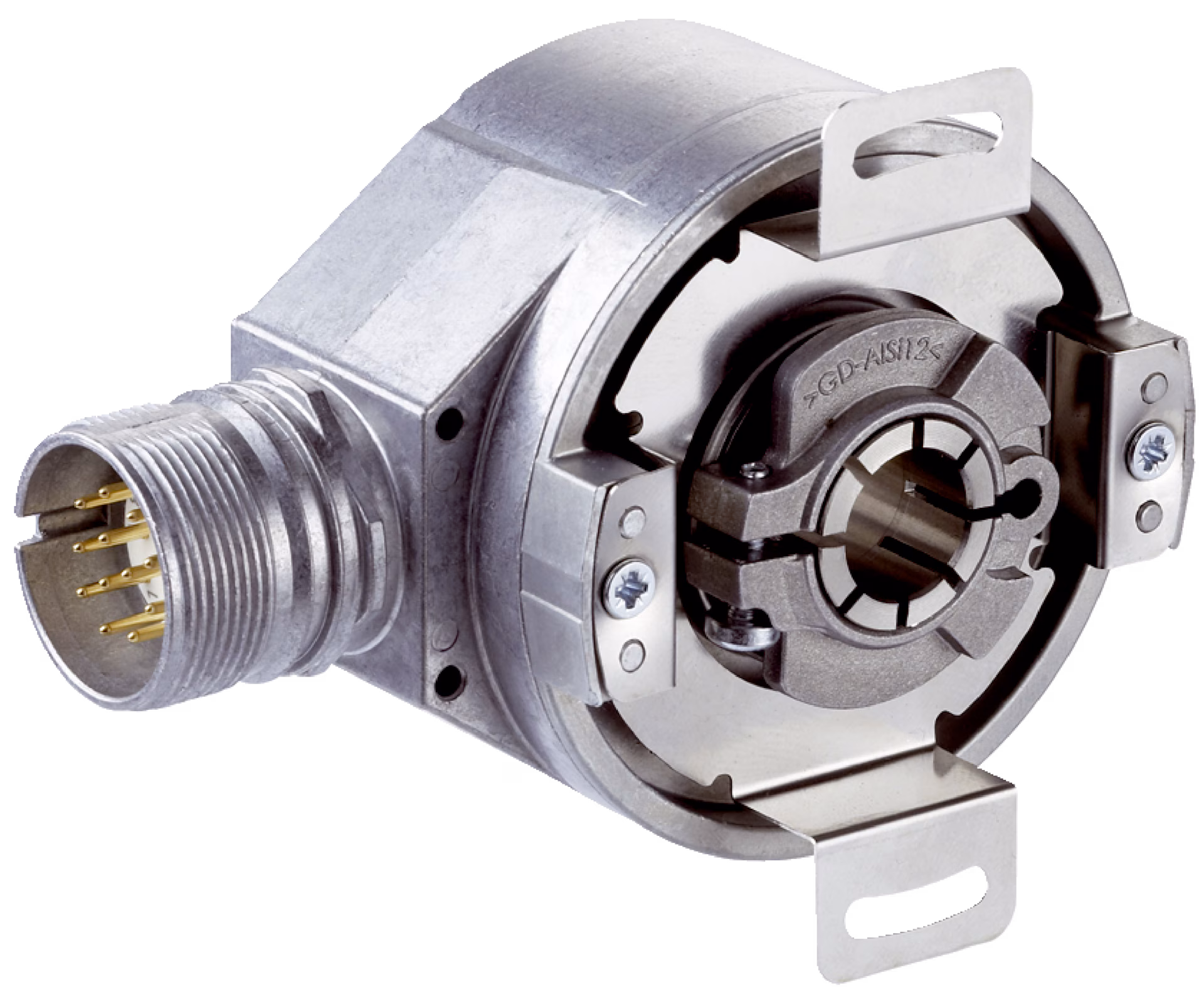

SICK 1067043 / DFS60B-TDMA10000 is an incremental encoder in the DFS60 family. Mechanical design: Through hollow shaft 10 mm (Front clamp); Communication interface: 4.5 V... 32 V, TTL, HTL, programmable; Connection type: Male connector, M23, 12-pin, radial; Pulses per revolution: 10,000.

Manufacturer

Sick

Part number

1067043

Product family

DFS60

Category

Incremental encoders

Technical details

Supply voltage: 4.5... 32 V; Communication interface: Incremental; Communication Interface detail: TTL / HTL; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP65, Housing side, male connector (IEC 60529); IP65, shaft side (IEC 60529); Housing material: Aluminum die cast; Weight: + 0.2 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Pulses per revolution: 10,000; Measuring step: 90°, electric/pulses per revolution; Measuring step deviation at non binary number of lines: ± 0.01°; Error limits: ± 0.05°; Factory setting: Factory setting: output level TTL; Number of signal channels: 6-channel

Weight

0.2 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
