1063527

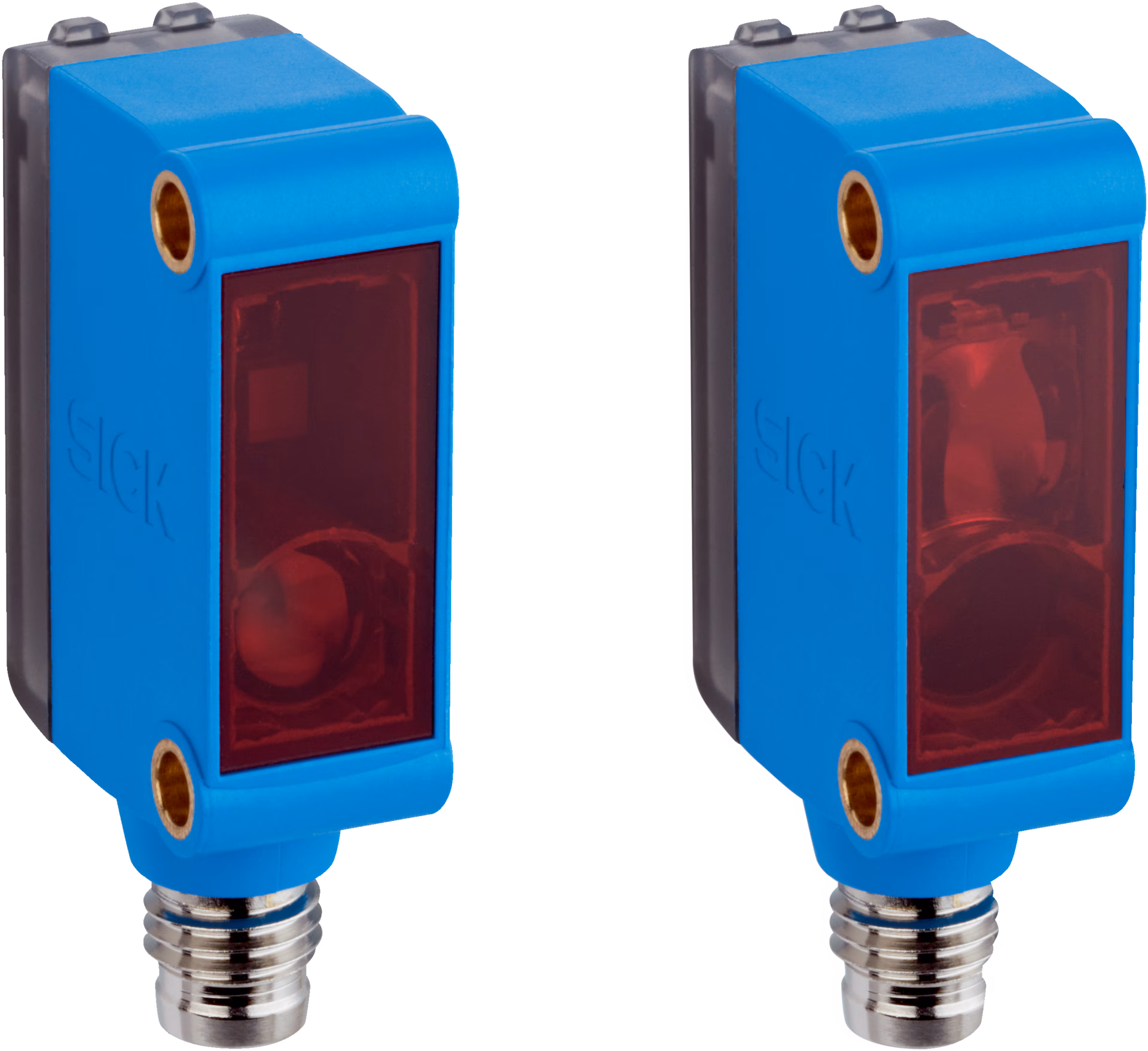

SICK 1063527 / GSE6-P4121S31 is a photoelectric sensor in the G6 family. Sensing range max.: 0 m... 14.5 m; Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: LED; Type of light: Infrared light; Housing material: ABS/PC; Adjustment: None; Housing: Rectangular.

Manufacturer

Sick

Part number

1063527

Product family

G6

Category

Photoelectric sensors

Technical details

Type of light: Infrared light; Sensing range max.: 0 m... 14.5 m; Sensing range: 0 m... 10.6 m; Supply voltage UB: 10 V DC... 30 V DC; Response time: < 500 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Enclosure rating: IP67; Ambient operating temperature: –25 °C... +55 °C; Weight: 40 g; Functional principle: Through-beam photoelectric sensor; Polarisation filter: No; Emitted beam: Light source LED; Light spot size (distance): Ø 460 mm (10 m); Key LED figures: Wave length 860 nm

Weight

0.04 kg

Dimensions

12 x 31.5 x 21
