1062344

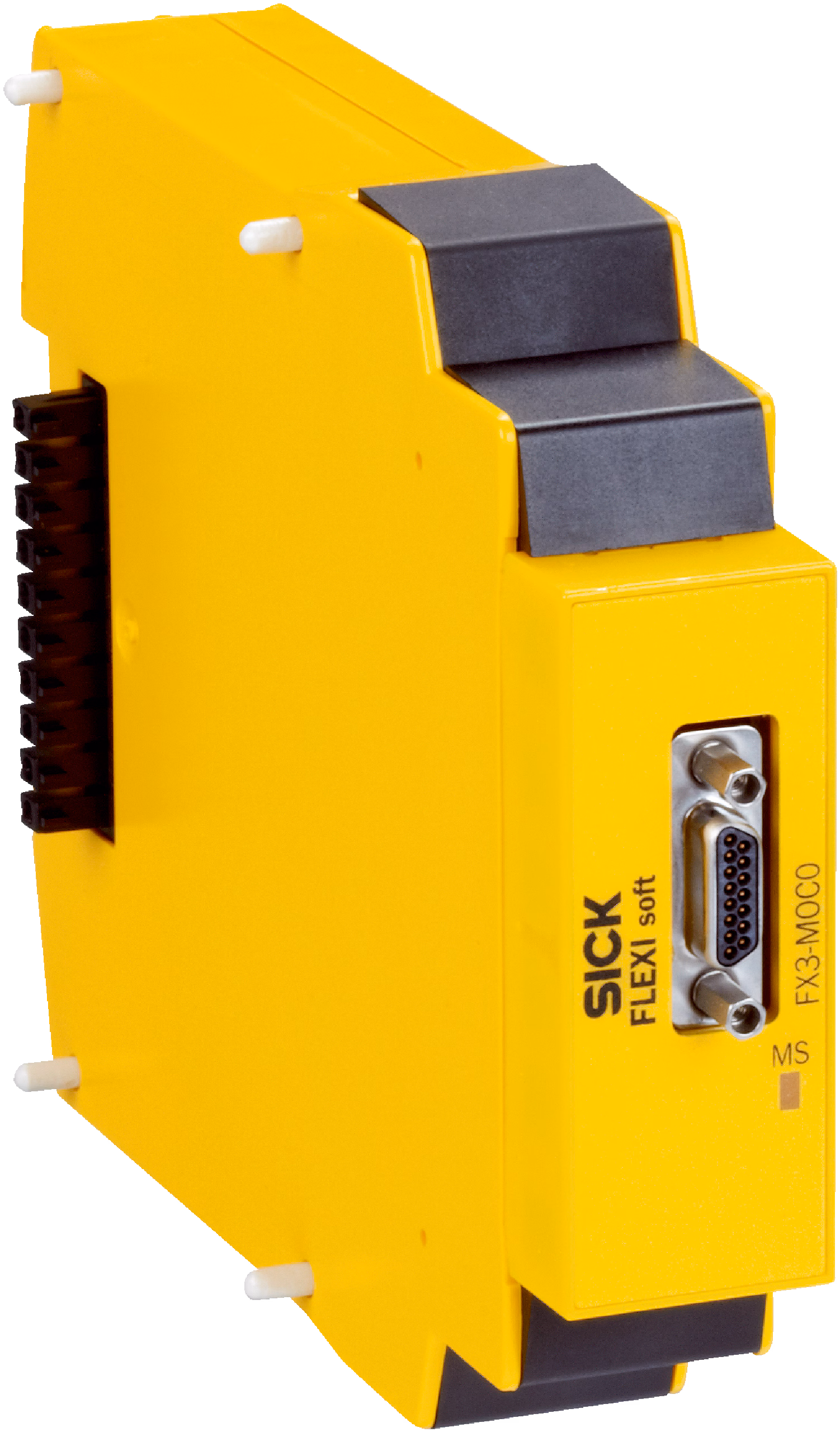

SICK 1062344 / FX3-MOC000000 is a safety controller in the Flexi Soft family. Module: Motion Control module; Connection type: Male connector, Micro D-Sub, 15-pin; Encoder interface: A/B incremental encoder, TTL, A/B incremental encoder, HTL 12 V or 24 V, A/B incremental encoder, RS-422, Sin/cos encoder, SSI encoder (master / listener), HIPERFACE®; Drive safety functions: Safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely-limited speed (SLS), safe direction (SDI), safe brake control (SBC); Protective coating for more challenging ambient conditions: no.

Manufacturer

Sick

Part number

1062344

Product family

Flexi Soft

Category

Safety controllers

Technical details

Encoder interface: A/B incremental encoder, TTL; A/B incremental encoder, HTL 12 V or 24 V; A/B incremental encoder, RS-422; Sin/cos encoder; SSI encoder (master / listener); HIPERFACE®; Data interface: Internal bus (FLEXBUS+); Dimensions (W x H x D): 22.5 mm x 96.5 mm x 126 mm; Connection type: Male connector, Micro D-Sub, 15-pin; Enclosure rating: IP20 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 120 g; Module: Motion Control module; Configuration method: Via software (Flexi Soft Designer); For axes with two encoders (any combination of sine-cosine, TTL, HTL 24 V, MTL 12 V, RS-422, SSI): Safety integrity level SIL 3 (IEC 61508); Category: Category 4 (EN ISO 13849); Performance level: PL e (EN ISO 13849); PFHD (mean probability of a dangerous failure per hour): 5.0 * 10; Minimum movement for error detection: ≥ selected tolerance limit for the function block used for the cross check, e.g. speed cross check, At least 1 x within 24 h

Weight

0.12 kg

Dimensions

22.5 x 96.5 x 126
