1061564

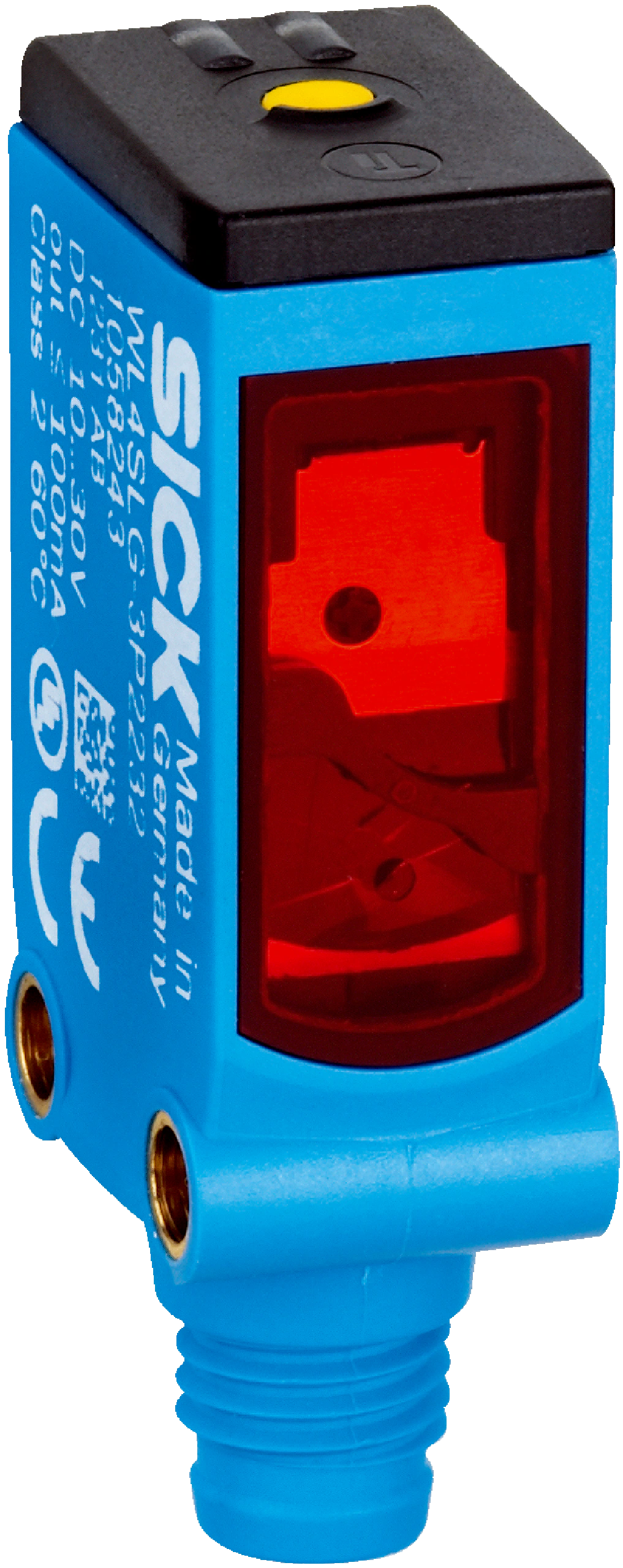

SICK 1061564 / WL4SL-3F3234 is a photoelectric sensor in the W4 family. Sensing range max.: 0 m... 12 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: PNP; Switching mode: Dark switching; Connection type: Cable with M8 male connector, 4-pin; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: Novodur; Adjustment: Wire/pin, Teach-in button; Housing: Rectangular.

Manufacturer

Sick

Part number

1061564

Product family

W4

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 12 m; Sensing range: 0 m... 8 m; Supply voltage UB: 10 V DC... 30 V DC; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 12.2 mm x 41.8 mm x 17.3 mm; Enclosure rating: IP66; IP67; Ambient operating temperature: –10 °C... +50 °C; Ambient operating temperature extended: –30 °C... +55 °C; Weight: 100 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Polarisation filter: Yes; Emitted beam: Light source Laser

Weight

0.1 kg

Dimensions

12.2 x 41.8 x 17.3
