1060172

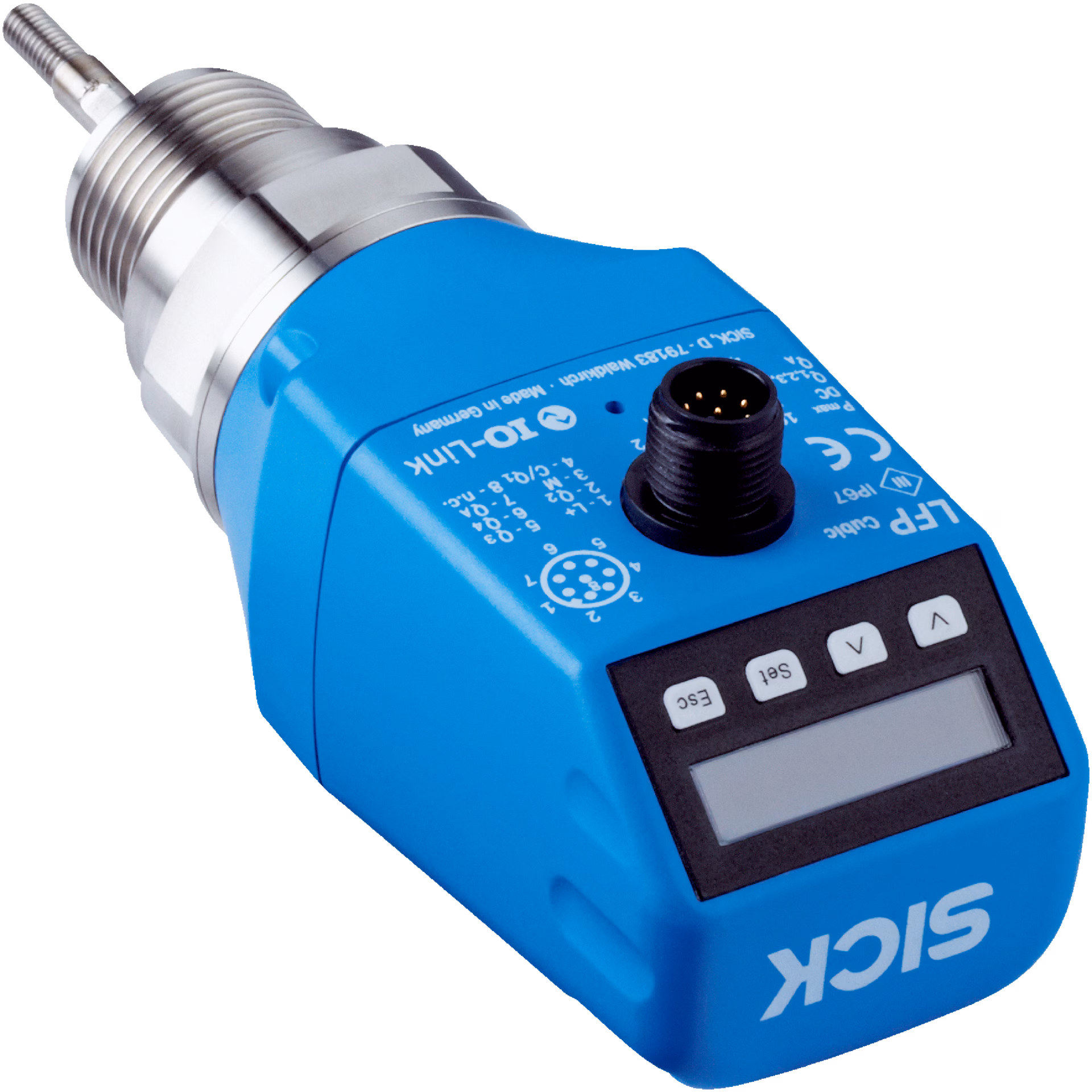

SICK 1060172 / LFP0025-B4NMB is a level sensor in the LFP Cubic family. Communication interface: IO-Link; Process connection: ¾" NPT; Probe type: Without probe; Remote amplifier: No; Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA... 20 mA / 0 V... 10 V; Connection type: Round connector M12 x 1, 5-pin; Process temperature: –20 °C... +100 °C; Process pressure: –1 bar... 10 bar; Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM; Housing material: PBT; Enclosure rating: IP67; Display: yes; PWIS-cleaned: no; Bluetooth: no.

Manufacturer

Sick

Part number

1060172

Product family

LFP Cubic

Category

Level sensors

Technical details

Resolution: 1 mm; Supply voltage: 12 V DC... 30 V DC; Communication interface: IO-Link; Accuracy of sensor element: ± 5 mm; Response time: 400 ms; Connection type: Round connector M12 x 1, 5-pin; Enclosure rating: IP67 (EN 60529); Housing material: Plastic PBT; Ambient operating temperature: –20 °C... +60 °C; Medium: Fluids; Measurement: Switch, Continuous; Design: Standard amplifier; Probe type: Without probe; Process pressure: –1 bar... 10 bar
