1058261

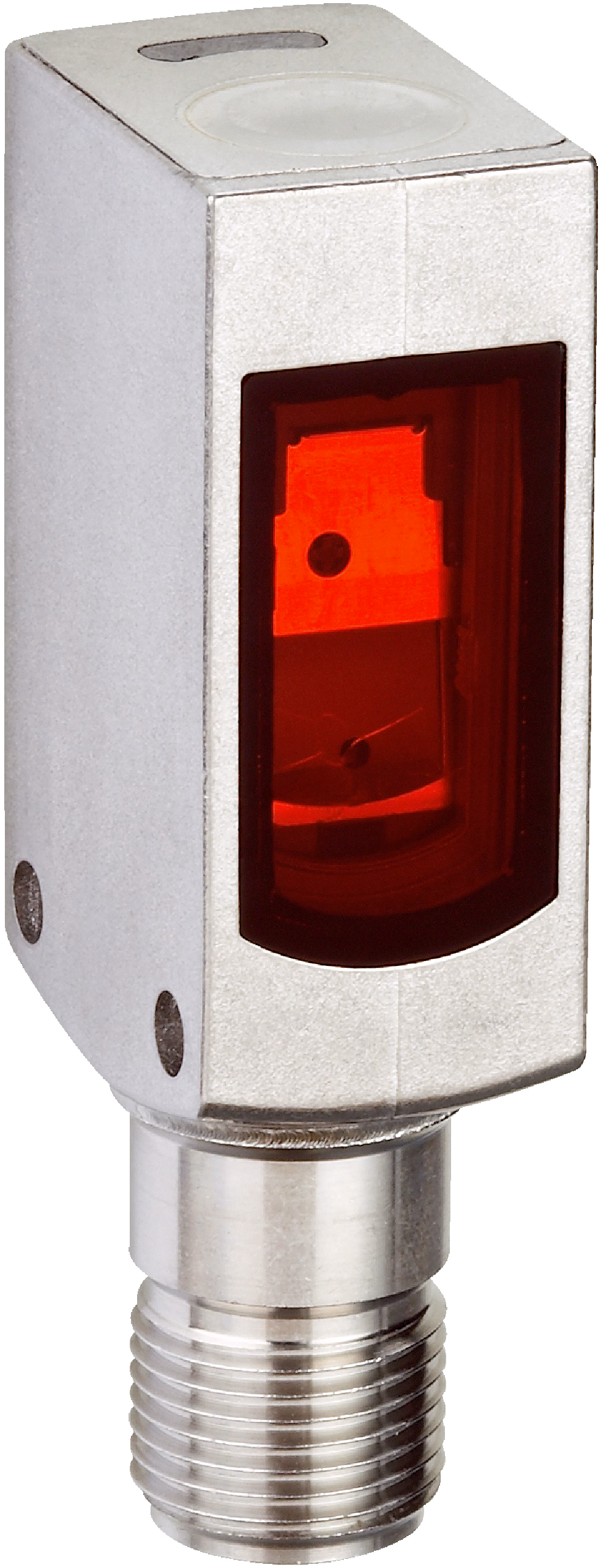

SICK 1058261 / WL4SLG-3P2432V is an archive in the W4 family. Photoelectric sensors; Sensing range max.: 0 m... 4.5 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: Laser; Type of light: Visible red light; Laser class: 1; Housing material: Stainless steel V4A (1.4404, 316L); Adjustment: Teach-in button; Housing: Rectangular.

Manufacturer

Sick

Part number

1058261

Product family

W4

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 4.5 m;; Sensing range: 0 m... 2 m;; Supply voltage UB: 10 V DC... 30 V DC; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 15.3 mm x 55.4 mm x 22.2 mm; Enclosure rating: IP66; IP67; IP68; IP69K; Ambient operating temperature: –10 °C... +50 °C; Ambient operating temperature extended: –30 °C... +55 °C; Weight: 45 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics); Polarisation filter: Yes; Emitted beam: Light source Laser

Weight

0.045 kg

Dimensions

15.3 x 55.4 x 22.2
