1057791

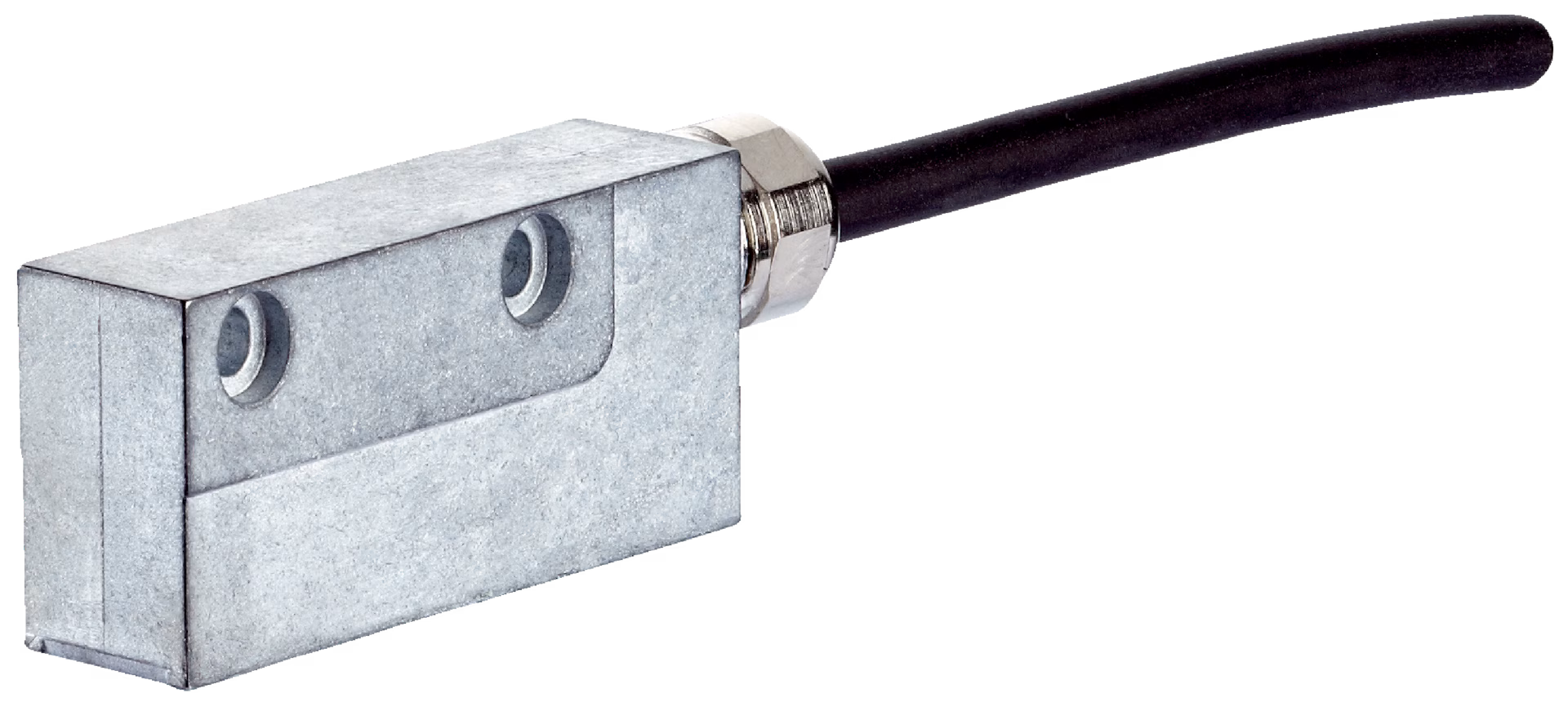

SICK 1057791 / TTK50-HXJ0-K02 is a linear encoder in the TTK50 family. Motor feedback systems; Communication interface: HIPERFACE®; Resolution: 1 µm; Safety system: no; Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m; System part: Read head; System accuracy: ± 10 µm; Technology: Magnet-coded.

Manufacturer

Sick

Part number

1057791

Product family

TTK50

Category

Linear encoders

Technical details

Resolution: 1 µm; Supply voltage: 7 V DC... 12 V DC; Recommended supply voltage: 8 V DC; Communication interface: HIPERFACE®; Repeatability: < 5 µm; System accuracy: ± 10 µm (+20 °C); Dimensions: See dimensional drawing; Connection type: Cable, 8-wire (4 x 2 x 0.15 mm²), 0.5 m; Enclosure rating: IP67, with mating plug inserted (IEC 60529); Weight: 0.06 kg, without cable; Items supplied: Magnetic tape not included with delivery; MTTFD (mean time to dangerous failure): 59 years (EN ISO 13849); Measuring step: 0.244 µm For interpolation of the sine/cosine signals with, e. g., 12 bits; Measuring range: 0 mm... 940 mm

Weight

0.06 kg
