1057113

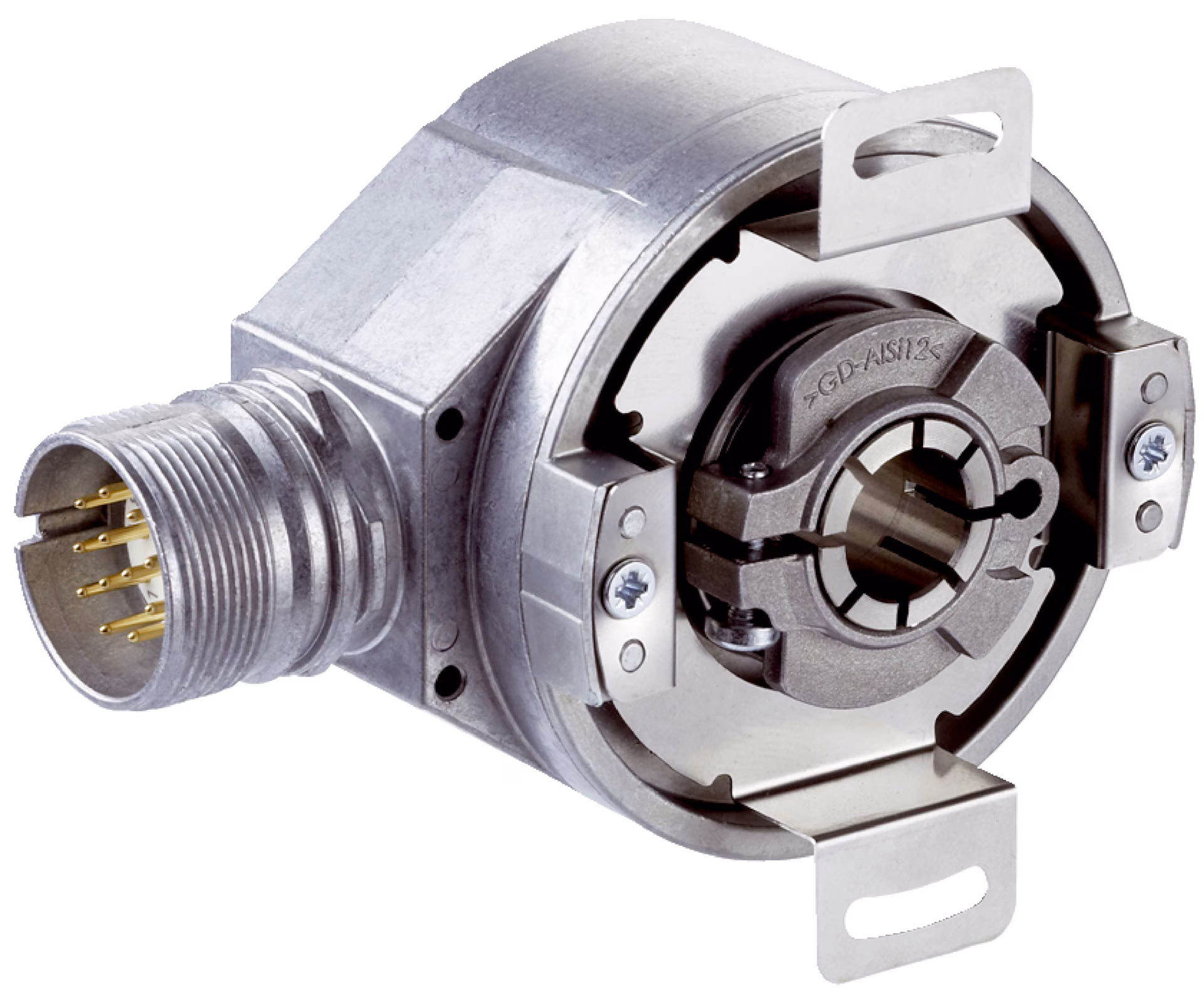

SICK 1057113 / AFS60A-TDPA262144 is an absolute encoder in the AFS/AFM60 SSI family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 262,144 (18 bit); Mechanical design: Through hollow shaft 10 mm (Front clamp); Communication interface: SSI, programmable; Connection type: Male connector, M23, 12-pin, radial; Programming interface: Over handheld programming tool, over SOPAS.

Manufacturer

Sick

Part number

1057113

Product family

AFS/AFM60 SSI

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 262,144 (18 bit); Supply voltage: 4.5... 32 V; Communication interface: SSI; Repeatability standard deviation σr: 0.002°; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); Housing material: Aluminum die cast; Weight: 0.2 kg; MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1); Error limits G: 0.03°; Initialization time: 50 ms; Position forming time: < 1 µs; Code type: Gray; Code sequence parameter adjustable: CW/CCW (V/R̅) parameter adjustable

Weight

0.2 kg
