1052686

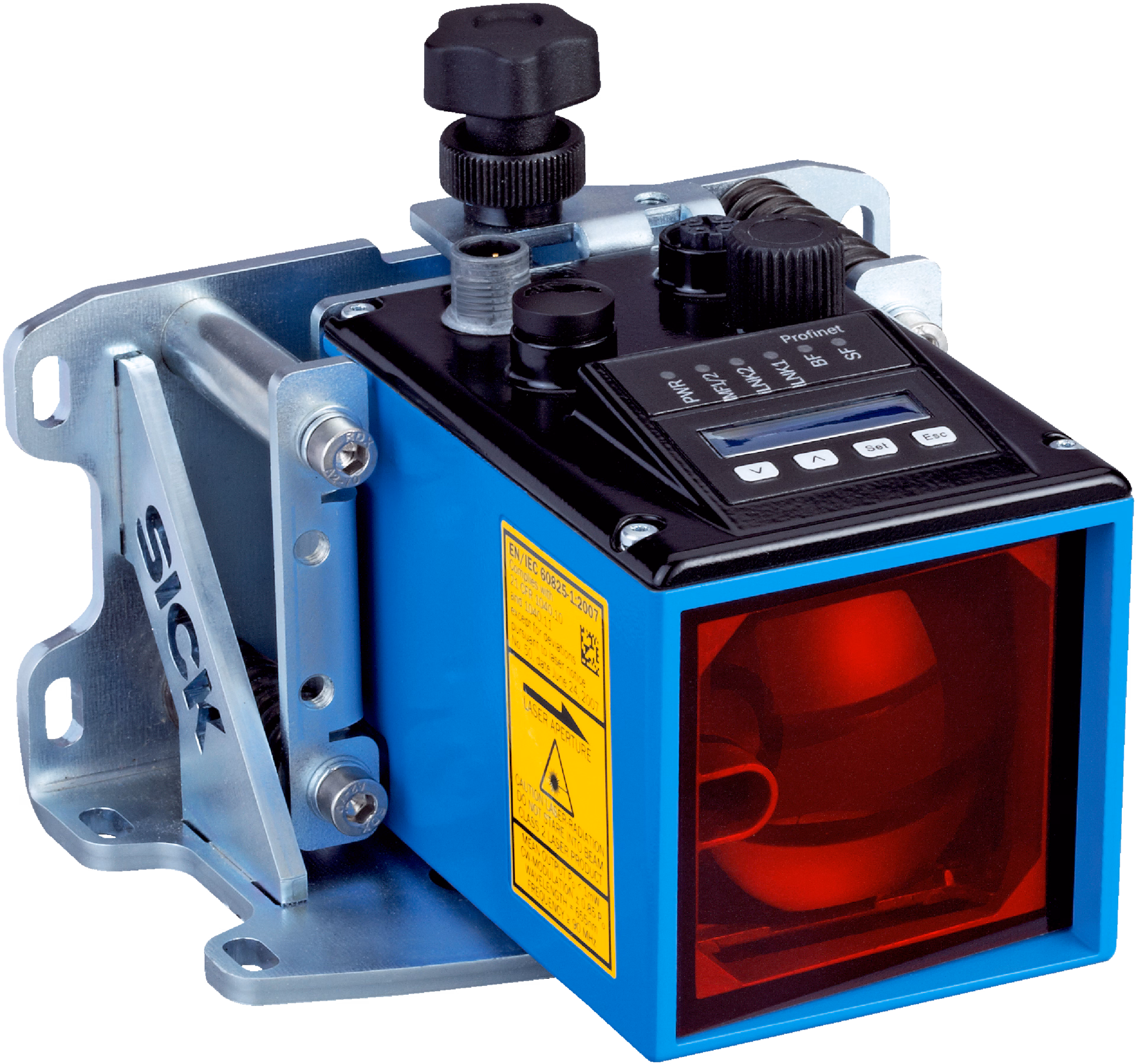

SICK 1052686 / DL100-21AA2102 is a laser distance sensor in the Dx100 family. Communication interface: PROFIBUS DP; Measuring range: 0.15 m... 100 m, on “diamond grade” reflective tape; Laser class: 2; Light source: Laser, red; Minimum response time: 2 ms; Digital output: 2 x push-pull: PNP/NPN; Multifunctional input (MF): 1 x MF1.

Manufacturer

Sick

Part number

1052686

Product family

Dx100

Category

Laser distance sensors

Technical details

Type of light: Visible red light; Resolution: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm; Supply voltage UB: DC 18 V... 30 V, limit values; Repeatability: 0.5 mm; Measurement accuracy: ± 2 mm; Response time: 2 ms; Dimensions (W x H x D): 69.4 mm x 82.5 mm x 100.2 mm; Connection type: Male connector, M12, SPEEDCON™ compatible; Enclosure rating: IP65; Housing material: Metal (Aluminum die cast); Weight: Approx. 800 g (with mounting bracket: approx. 1,600 g); Measuring range: 0.15 m... 100 m, on “diamond grade” reflective tape; Scope: Indoor; Target: Reflector

Weight

0.8 kg

Dimensions

69.4 x 82.5 x 100.2
