1051017

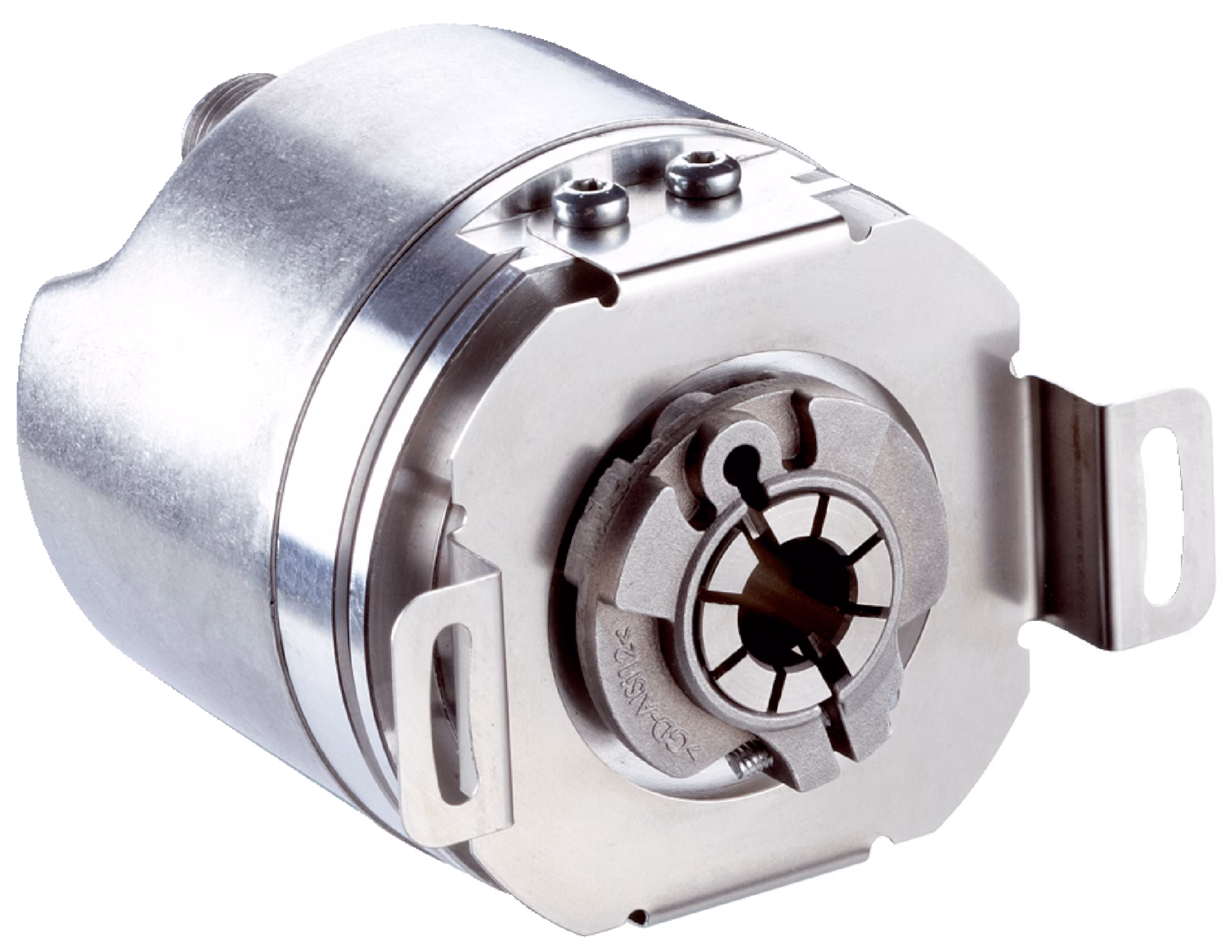

SICK 1051017 / A3M60B-BHPB013x13 is an absolute encoder in the A3M60 family. Singleturn or multiturn version: Multiturn; Max. resolution: 13 bit x 13 bit (8,192 x 8,192); Mechanical design: Blind hollow shaft 15 mm (Front clamp); Communication interface: PROFIBUS DP, DPV0, programmable; Connection type: Male connector, 2x, M12, 5-pin, axial, Female connector, 1x, M12, 5-pin, axial; Programming interface: Over PLC-Engineering-Tool.

Manufacturer

Sick

Part number

1051017

Product family

A3M60

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 8,192 (13 bit); Max. resolution (number of steps per revolution x number of revolutions): 13 bit x 13 bit (8,192 x 8,192); Supply voltage: 10... 32 V; Communication interface: PROFIBUS DP; Communication Interface detail: DPV0; Repeatability standard deviation σr: 0.25° (at room temperature); Connection type: Male connector, 2x, M12, 5-pin, axial; Female connector, 1x, M12, 5-pin, axial; Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); Housing material: Aluminum; Weight: 0.28 kg; MTTFD (mean time to dangerous failure): 60 years (EN ISO 13849-1); Number of revolutions: 8,192 (13 bit); Error limits G: 0.5° (at room temperature); Data transmission rate (baud rate): ≤ 12 MBaud

Weight

0.28 kg
