1048538

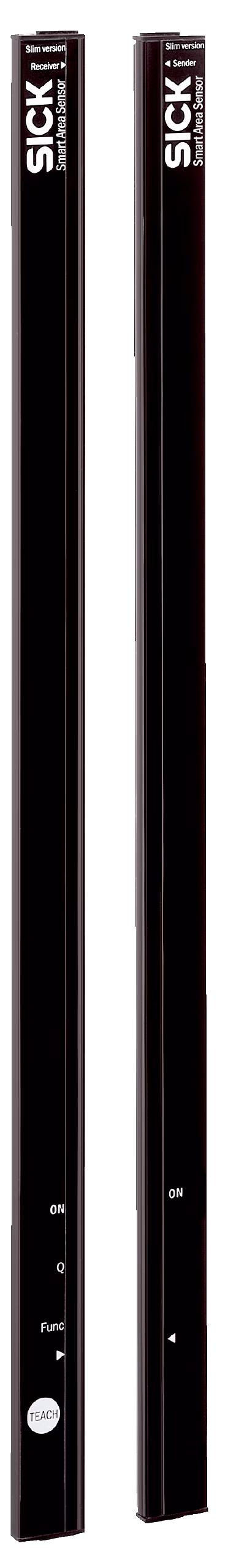

SICK 1048538 / SGS4-F140P7PS1WS05 is an archive in the SLG family. Automation light grids; Optical light exit: Flat; Aluminum stabilizer: Without stabilizer; Parameterization: None; Beam separation: 40 mm; Cross beam/parallel beam: Parallel beam active; Operating range: 7 m; Detection height: 1,400 mm; Response time: 19 ms.

Manufacturer

Sick

Part number

1048538

Product family

SLG

Category

Archive

Technical details

Sensor principle: Sender/receiver; Operating range: 7 m; Minimum detectable object (MDO): Parallel beam, 45 mm; Beam separation: 40 mm; Number of beams: 36; Detection height: 1,400 mm; Supply voltage Vs: DC24 V, ± 20 %; Switching output: PNP; Response time: Parallel beam, 19 ms; Dimensions (W x H x D): 25 mm x 1,472.4 mm x 8.2 mm; Connection type: Cable with M8 male connector, 4-pin; Enclosure rating: IP65;; Housing material: PMMA; Ambient operating temperature: –25 °C... +55 °C

Weight

0.18 kg

Dimensions

25 x 1.472.4 x 8.2
