1043917

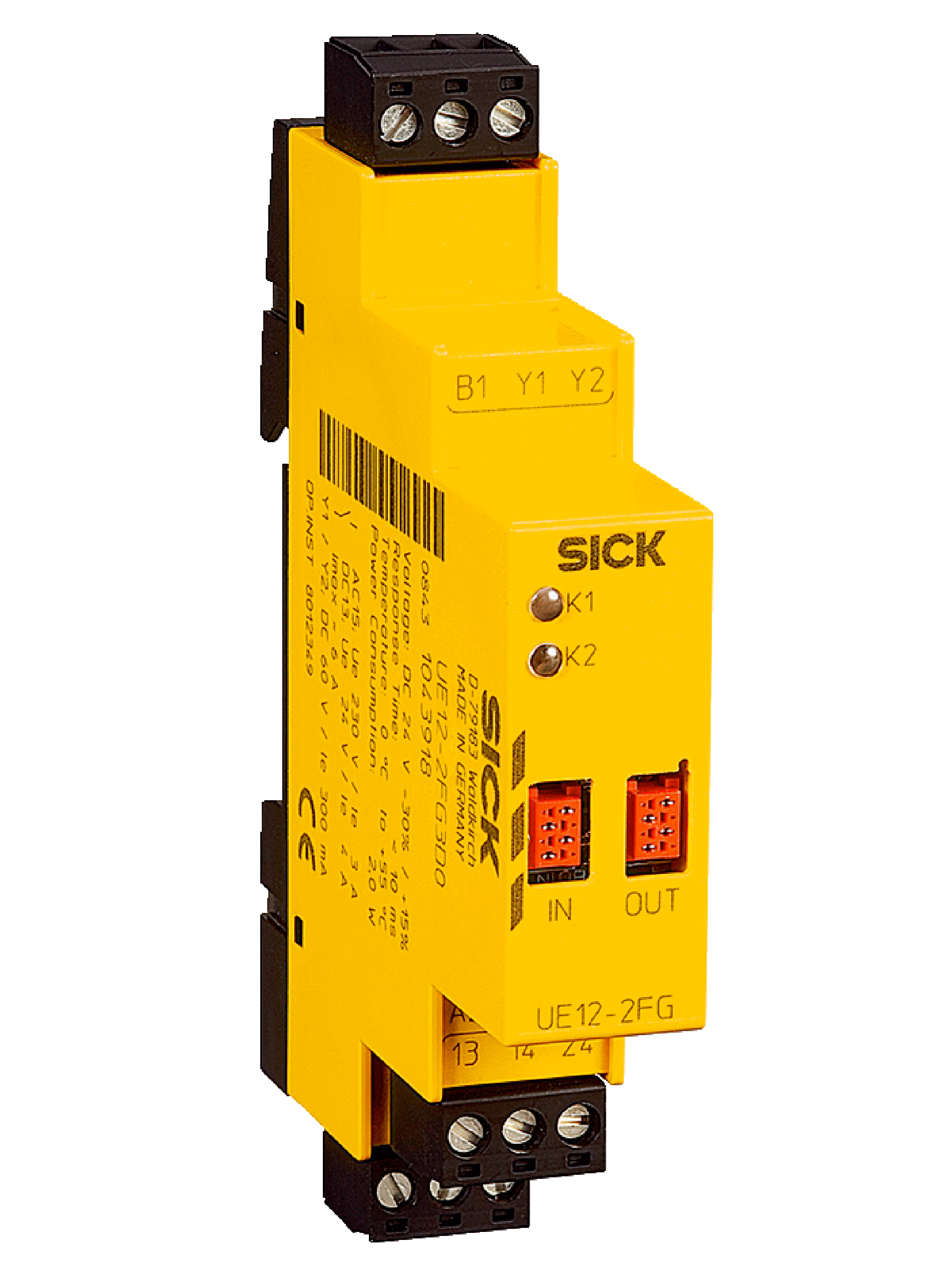

SICK 1043917 / UE12-2FG2D0 is an archive in the UE12-2FG family. Safety relays; Applications: Output expansion module for OSSDs; Compatible sensor types: Opto-electronic protective devices; External device monitoring (EDM): Via path; Number of enable current contacts: 2; Housing width: 17.8 mm.

Manufacturer

Sick

Part number

1043917

Product family

UE12-2FG

Category

Archive

Technical details

Response time: (≤ 10 ms); Dimensions (W x H x D): 17.8 mm x 89.8 mm x 70.8 mm; Weight: 91 g; Safety integrity level: SIL 3 (IEC 61508); Category: Category 4 (EN ISO 13849); Performance level: PL e (EN ISO 13849); B10d parameter: 1 x 10 switching cycles (AC-15, 230 V, I = 2 A); 2.5 x 10 switching cycles (AC-15, 230 V, I = 1 A); 5.4 x 10 switching cycles (DC-13, 24 V, I = 0.5 A); 1 x 10 switching cycles (DC-13, 24 V, I ≤ 2 A); PFHD (mean probability of a dangerous failure per hour): 1.2 x 10 (EN ISO 13849); TM (mission time): 20 years (EN ISO 13849); Voltage supply: B1/A2, B2/A2; Output circuit > 25 V AC / 60 V DC: PELV; Output circuit ≤ 25 V AC / 60 V DC: PELV or SELV; Residual ripple: (≤ 2.4 Vpp); Power consumption: (≤ 2 W (DC))

Weight

0.091 kg

Dimensions

17.8 x 89.8 x 70.8
