1041262

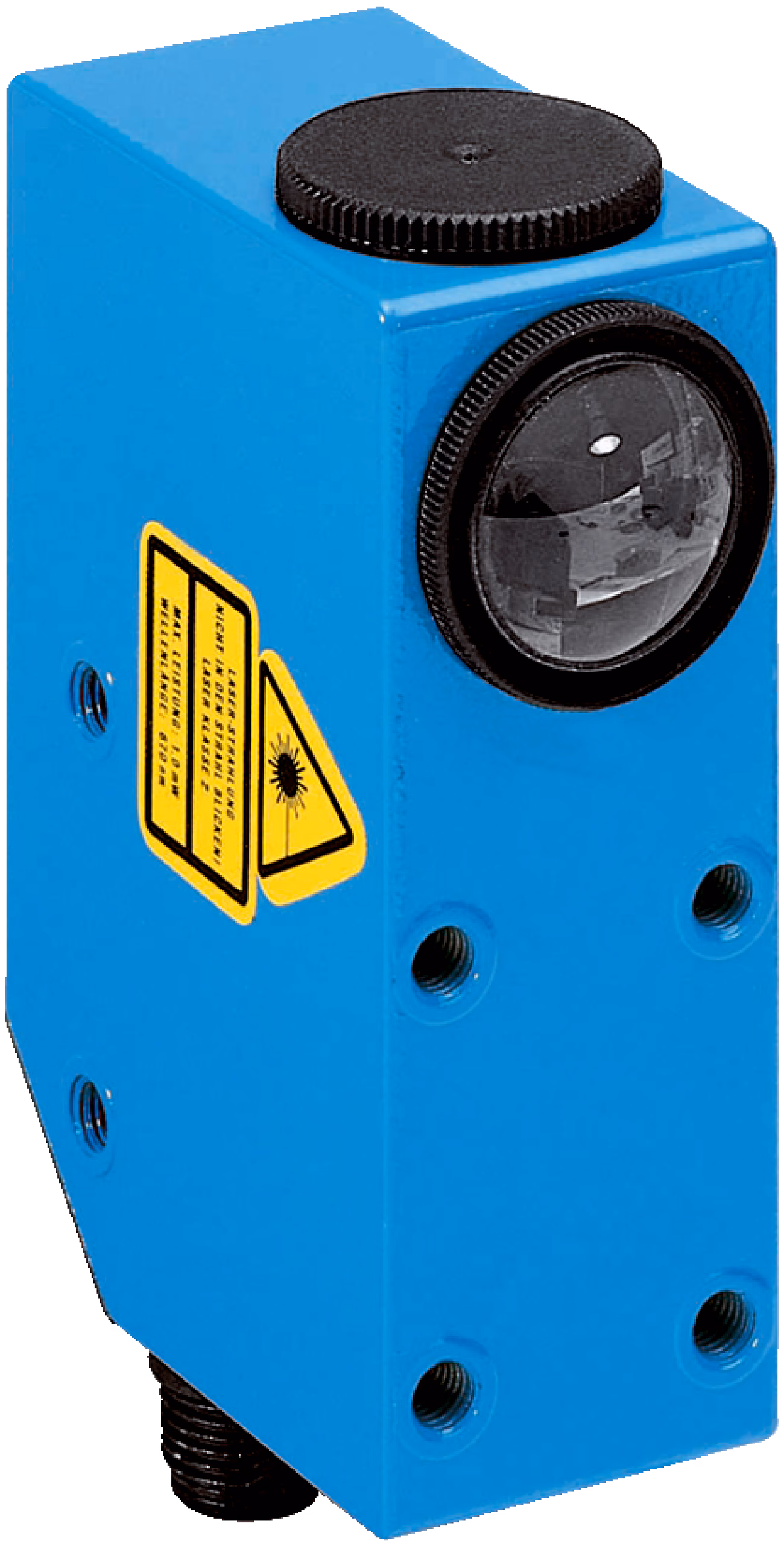

SICK 1041262 / KT8L-P3656 is a contrast sensor in the KT8 family. Light source: Laser; Communication interface: -; Sensing distance: 150 mm; Switching output: PNP; Light spot size: Ø 0.3 mm; Light spot direction: Round; Light emission: Long side of housing; Connection type Detail: Plug, M12, 5-pin; Adjustment: Teach-in button; Teach-in mode: Static 2-point teach-in, Dynamic teach-in (min/max); Housing material: Metal.

Manufacturer

Sick

Part number

1041262

Product family

KT8

Category

Contrast sensors

Technical details

Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 30 µs; Dimensions (W x H x D): 30.4 mm x 53 mm x 80 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP67; Housing material: Zinc diecast; Ambient operating temperature: –10 °C... +45 °C; Weight: + 400 g; Housing design: Large; Light source: Laser, visible red light; Light emission: Long side of housing; Light spot size: Ø 0.3 mm

Weight

0.4 kg

Dimensions

30.4 x 53 x 80
