1030009

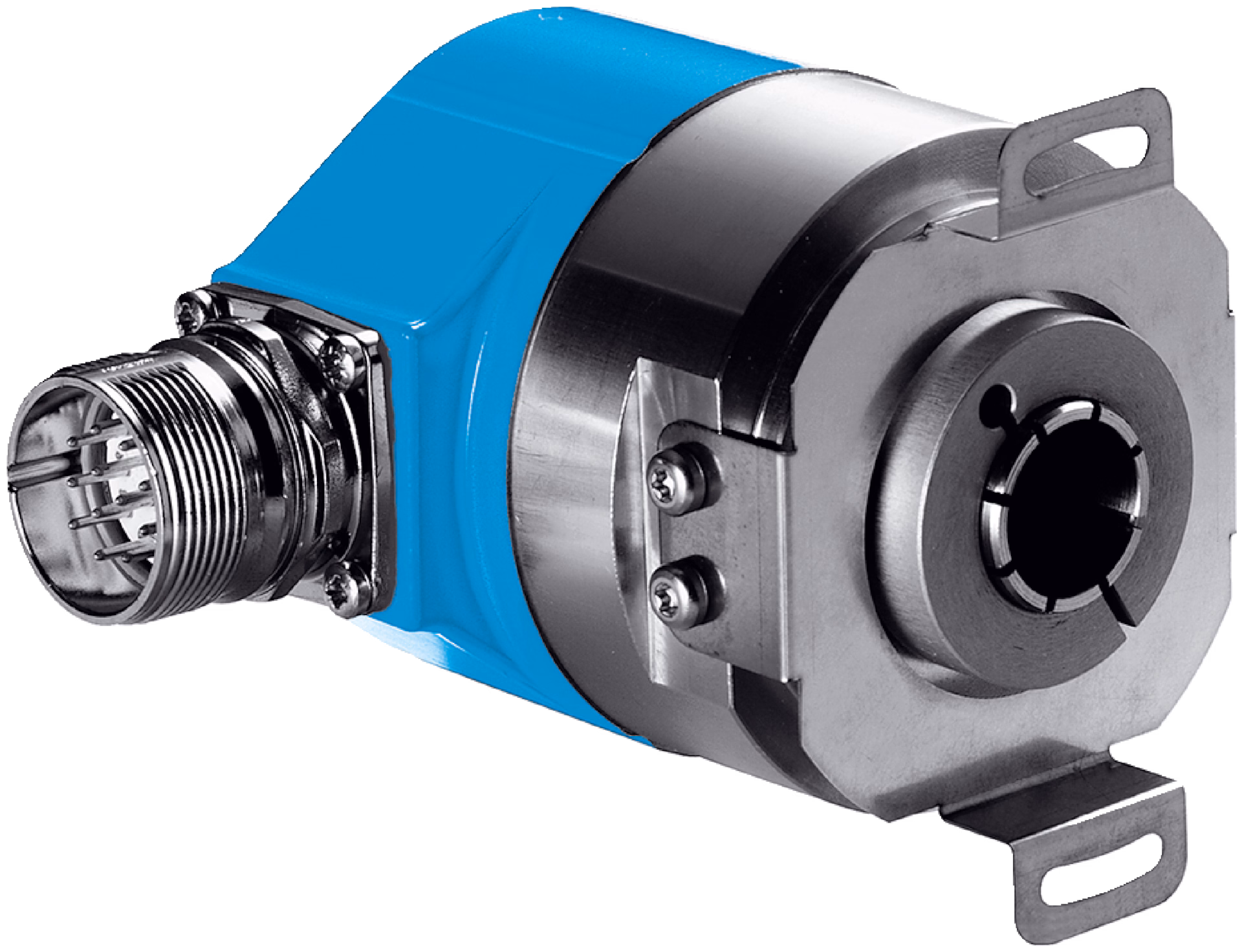

SICK 1030009 / ATM60-AAA12x12 is an archive in the ATM60 family. Absolute encoders; Singleturn or multiturn version: Multiturn; Max. resolution: 13 bit x 13 bit (8,192 x 8,192); Mechanical design: Blind hollow shaft 15 mm; Communication interface: SSI, programmable; Connection type: Male connector, M23, 12-pin, radial; Programming interface: Over handheld programming tool.

Manufacturer

Sick

Part number

1030009

Product family

ATM60

Category

Archive

Technical details

Number of steps per revolution (max. resolution): 8,192 (13 bit); Max. resolution (number of steps per revolution x number of revolutions): 13 bit x 13 bit (8,192 x 8,192); Resolution: Maximum permissible resolution: 25 bit (12 bit singleturn x 13 bit multiturn or 13 bit singleturn x 12 bit multiturn).; Supply voltage: 10... 32 V; Communication interface: SSI; Repeatability standard deviation σr: 0.1°; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP67, with shaft seal (IEC 60529); IP43, without shaft seal, on encoder flange not sealed (IEC 60529); IP65, without shaft seal, on encoder flange sealed (IEC 60529); Weight: 0.4 kg; MTTFD (mean time to dangerous failure): 150 years (EN ISO 13849-1); Number of revolutions: 8,192 (13 bit); Measuring step: 0.043°; Error limits G: ± 0.25°; Initialization time: 1,050 ms

Weight

0.4 kg
