1029854

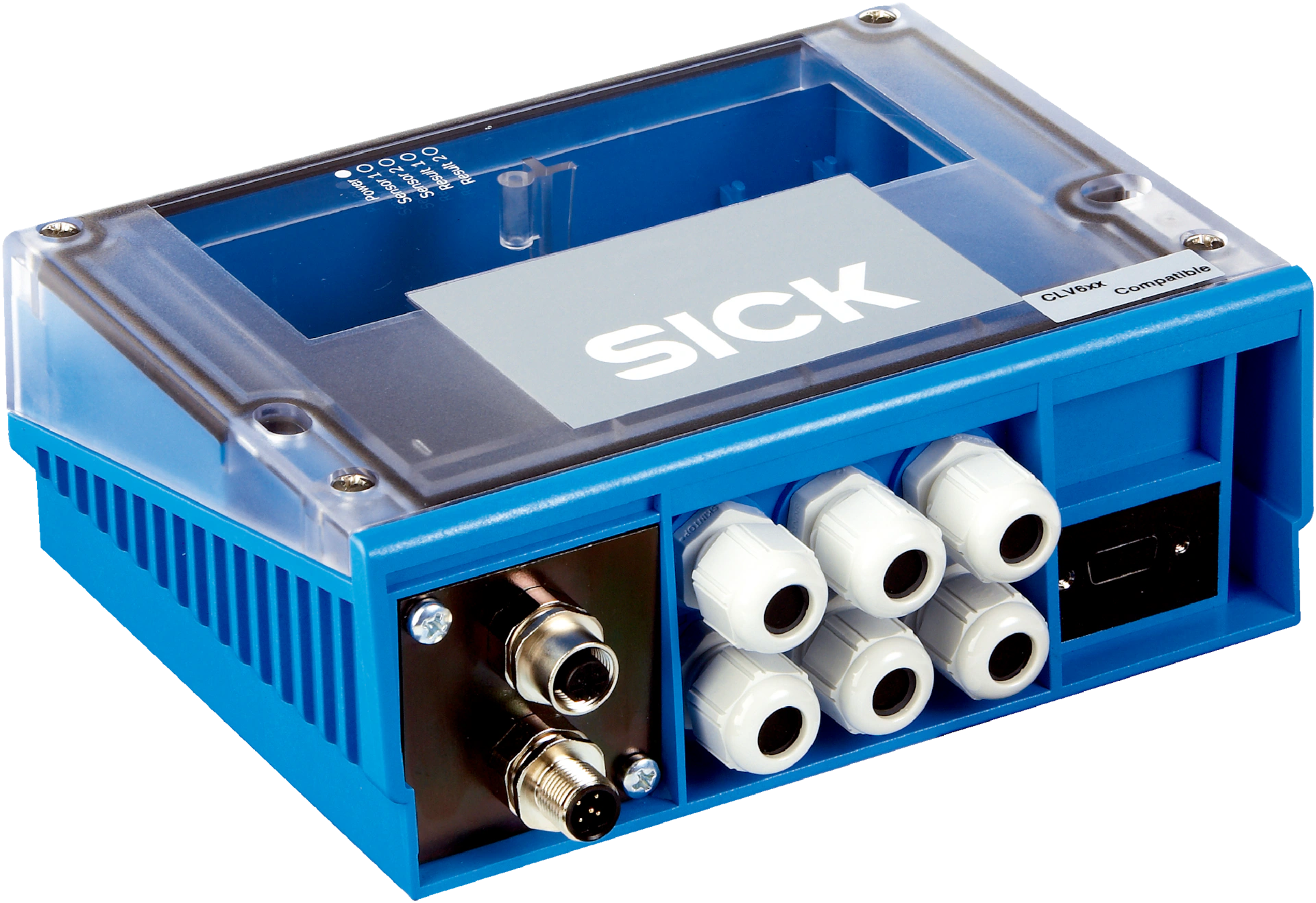

SICK 1029854 / CDM420-0205 is an archive in the CDM family. Junction boxes; Brief description: Modular connection module for one sensor with pre-mounted CMF400 PROFIBUS module (Interface 2 x M12) and integrated CMC parameter cloning module; Communication interface: EthernetSerialCANPROFIBUS DPDeviceNet™; Communication Interface detail: RS-232; Supported products: CLV61x - CLV65x.

Manufacturer

Sick

Part number

1029854

Product family

CDM

Category

Archive

Technical details

Dimensions (L x W x H): 192 mm x 167 mm x 70 mm; Enclosure rating: IP65; Ambient operating temperature: 0 °C... +40 °C; Weight: + 800 g; Brief description: Modular connection module for one sensor with pre-mounted CMF400 PROFIBUS module (Interface 2 x M12) and integrated CMC parameter cloning module; Supported products: CLV61x - CLV65x; Cloning module support (CMC): Yes; Supports display module (CMD): Yes; Supports power supply module (CMP): Yes; Supports fieldbus gateway (CMF): Integrated (PROFIBUS DP); Power consumption: Power consumption of the sensor + 0.5 W; Housing: Polycarbonate; Scanner connection: 15-pin D-Sub HD female connector; Service plug: 9-pin D-Sub plug (internal)

Weight

0.8 kg

Dimensions

192 x 167 x 70
