1028152

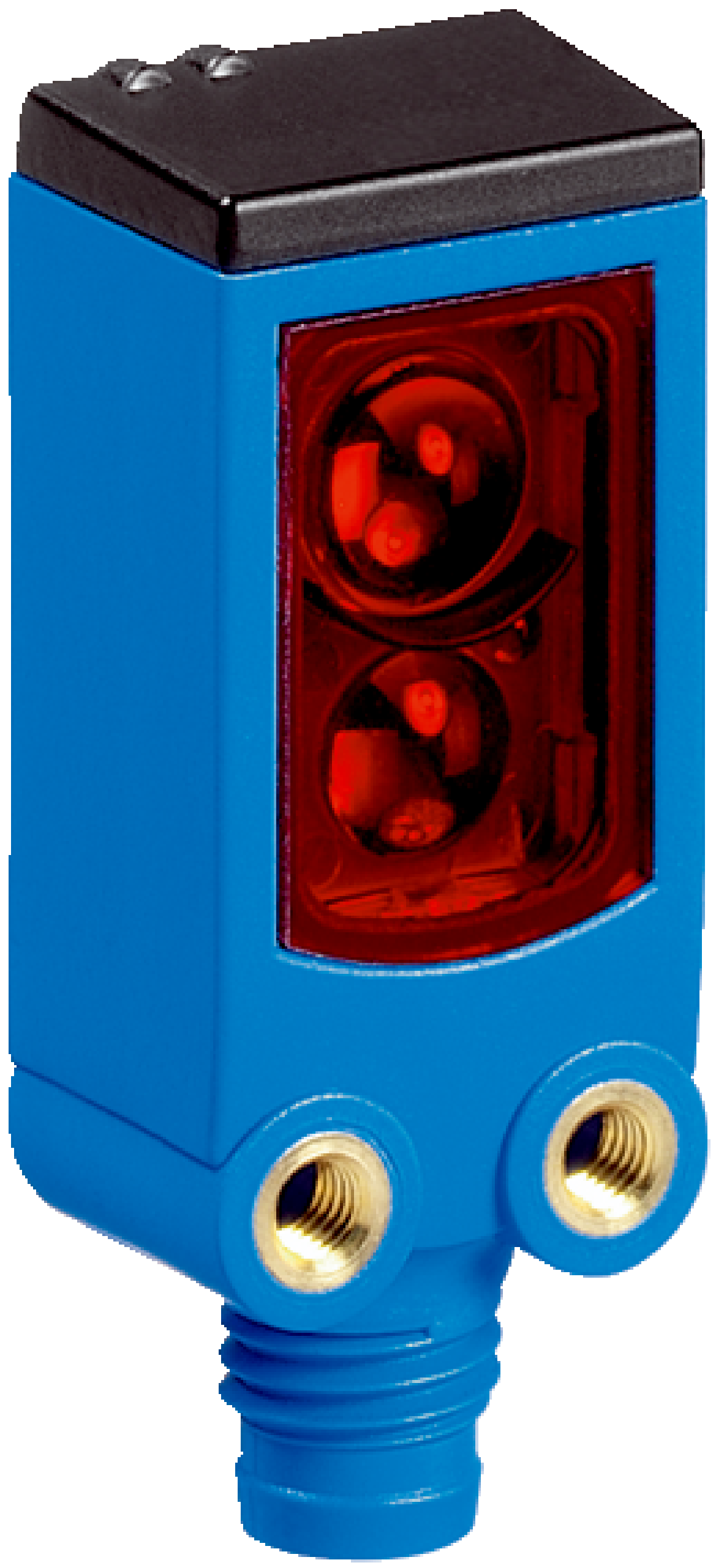

SICK 1028152 / WL4-3F1330 is an archive in the W4 family. Photoelectric sensors; Sensing range max.: 0.01 m... 4.5 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: PNP; Switching mode: Dark switching; Connection type: Cable, 3-wire, 2 m; Light source: PinPoint LED; Type of light: Visible red light; Housing material: ABS; Adjustment: None; Housing: Rectangular.

Manufacturer

Sick

Part number

1028152

Product family

W4

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.01 m... 4.5 m; Sensing range: 0.02 m... 3.5 m; Supply voltage UB: 10 V DC... 30 V DC; Response time: < 0.5 ms; Dimensions (W x H x D): 16 mm x 39.5 mm x 12 mm; Enclosure rating: IP67; IP66; Ambient operating temperature: –40 °C... +60 °C; Weight: 30 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Polarisation filter: Yes; Emitted beam: Light source PinPoint LED; Light spot size (distance): Ø 75 mm (1.5 m)

Weight

0.03 kg

Dimensions

16 x 39.5 x 12

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
