1027785

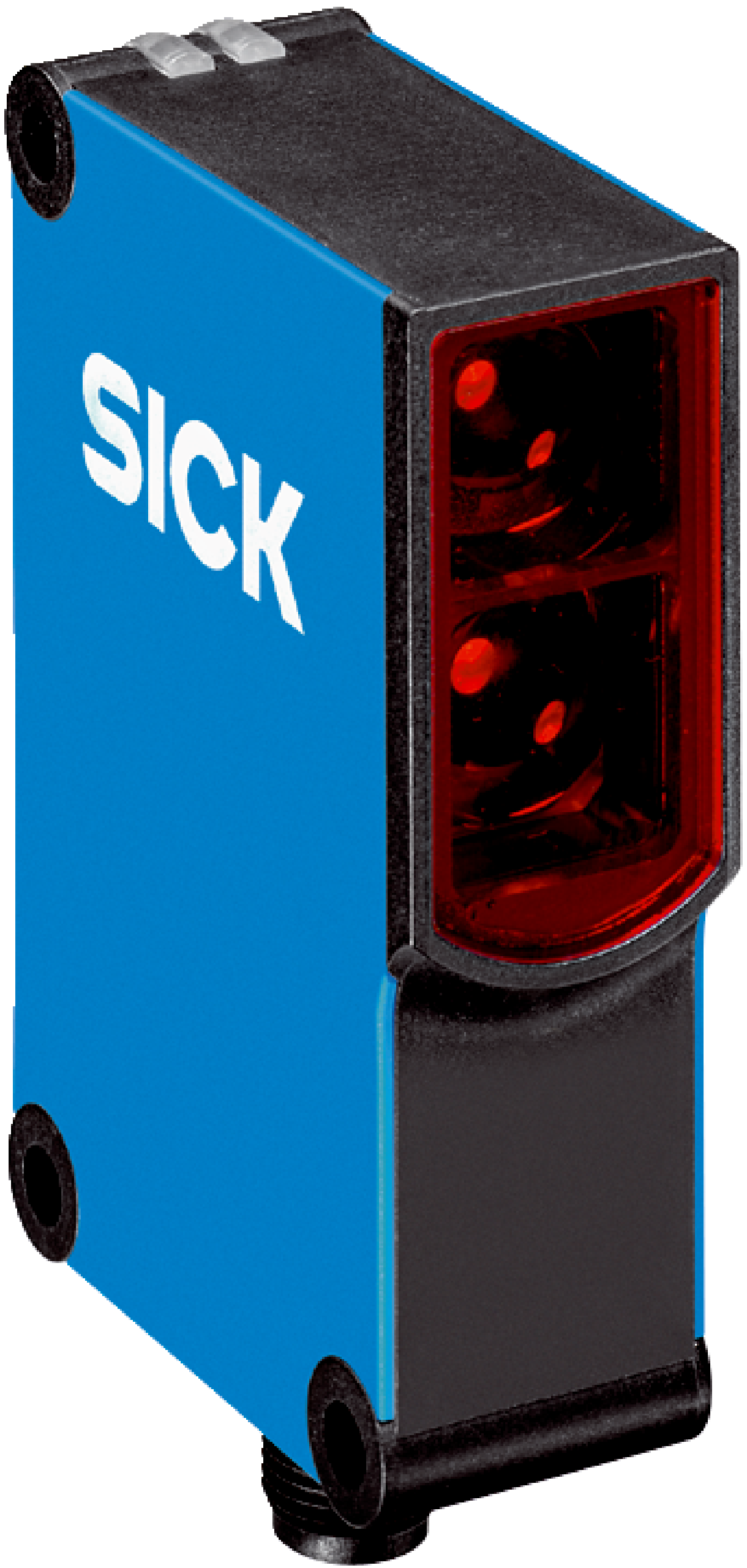

SICK 1027785 / WL23-2P2430 is an archive in the W23-2 family. Compact photoelectric sensors; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Dual lens; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: LED; Adjustment: None; Communication interface: -.

Manufacturer

Sick

Part number

1027785

Product family

W23-2

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.1 m... 10 m; Sensing range: 0.3 m... 7 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 2.5 ms; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: Plastic, ABS; Ambient operating temperature: –25 °C... +60 °C; Weight: 100 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Dual lens

Weight

0.1 kg

Dimensions

24.6 x 80.6 x 54
