1027333

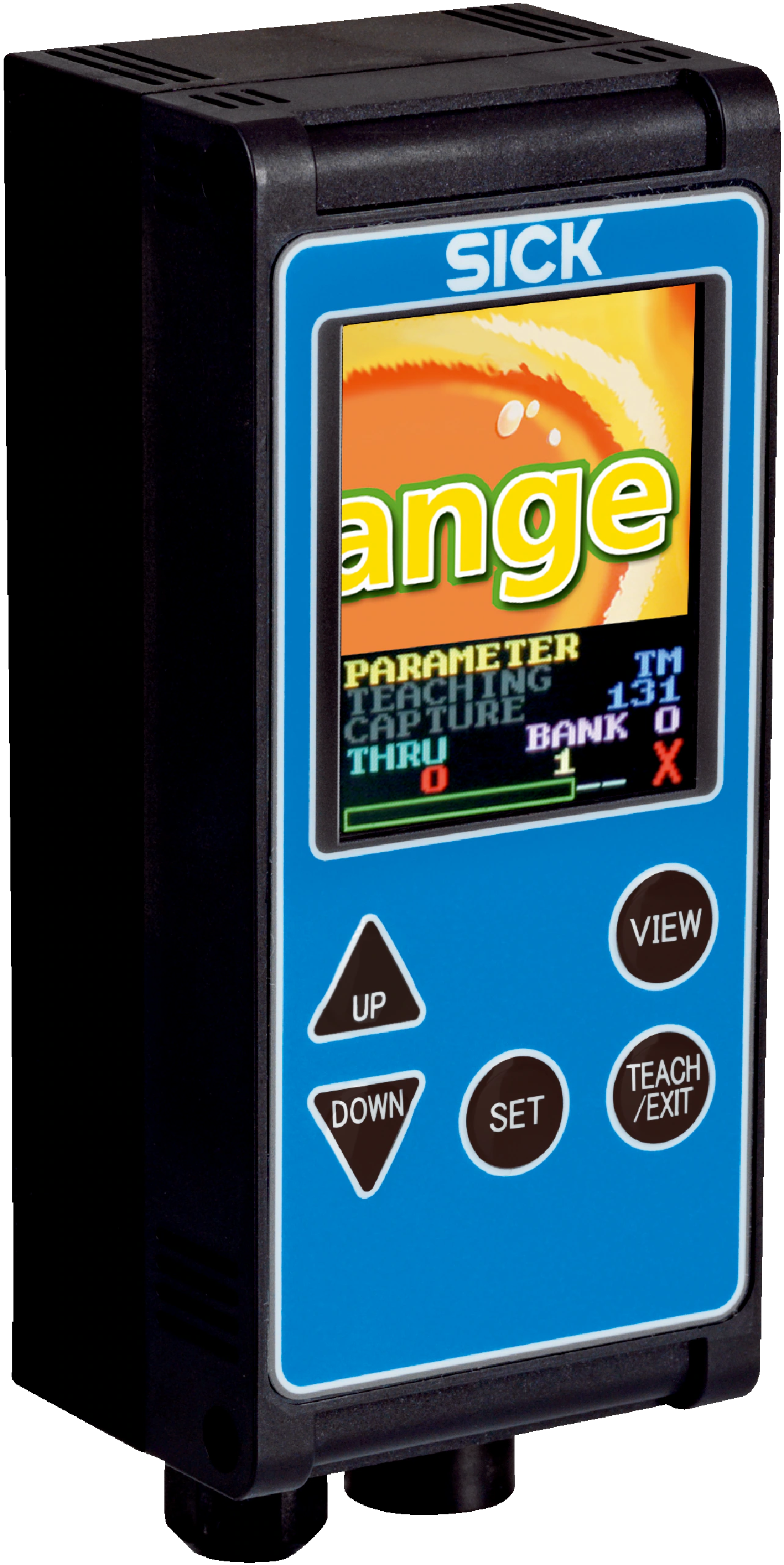

SICK 1027333 / CVS2-P122 is an archive in the CVS family. 2D machine vision; Product name: CVS2; Lens: Integrated; Working distance: 90 mm... 150 mm; Sensor: CMOS matrix sensor, color values; Optical focus: Fixed focus.

Manufacturer

Sick

Part number

1027333

Product family

CVS

Category

Archive

Technical details

Sensor resolution: 208 px x 236 px x 3 px (RGB); Operator interfaces: External display or integrated display; Dimensions (L x W x H): 95 mm x 42 mm x 34 mm; Connection type: Cable, 8-wire, 2 m (I/O, power); HRS, 6-pin (external lighting/monitor); Enclosure rating: IP67; Housing material: ABS, acryl glass, polycarbonate; Ambient operating temperature: 0 °C... +40 °C; Weight: 180 g; Product category: Configurable; Toolkit: Color recognition; Color sort; Reconciliation of object color to background; Sensor: CMOS matrix sensor, color values; Optical focus: Fixed focus; Working distance: 90 mm... 150 mm; LED class: Risk group 1 (low risk, IEC62471: 2006)

Weight

0.18 kg

Dimensions

95 x 42 x 34
