1023549

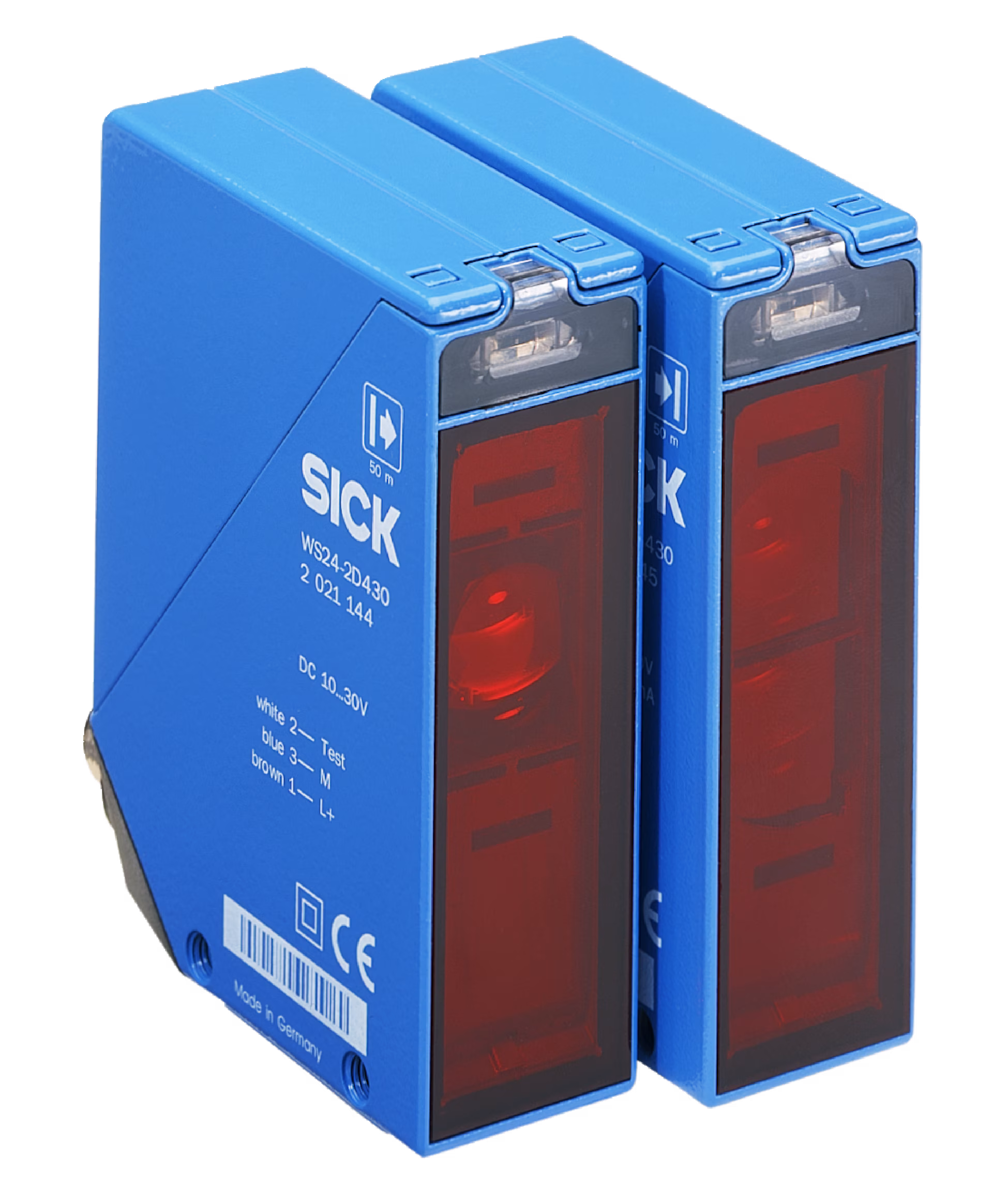

SICK 1023549 / WS/WE24-2S01 is a photoelectric sensor in the W24 family. Sensing range max.: 0 m... 60 m; Functional principle: Through-beam photoelectric sensor; Switching output: NPN, PNP; Switching mode: Light/dark switching; Connection type: Plug, M12, 5-pin; Adjustment: Potentiometer.

Manufacturer

Sick

Part number

1023549

Product family

W24

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 60 m; Sensing range: 0 m... 50 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: NPN, PNP; Response time: ≤ 500 µs; Dimensions (W x H x D): 27 mm x 87.5 mm x 65 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP67; Housing material: Metal, zinc diecast; Ambient operating temperature: –40 °C... +60 °C; Weight: 700 g; Functional principle: Through-beam photoelectric sensor; Housing design (light emission): Rectangular

Weight

0.7 kg

Dimensions

27 x 87.5 x 65
