1022569

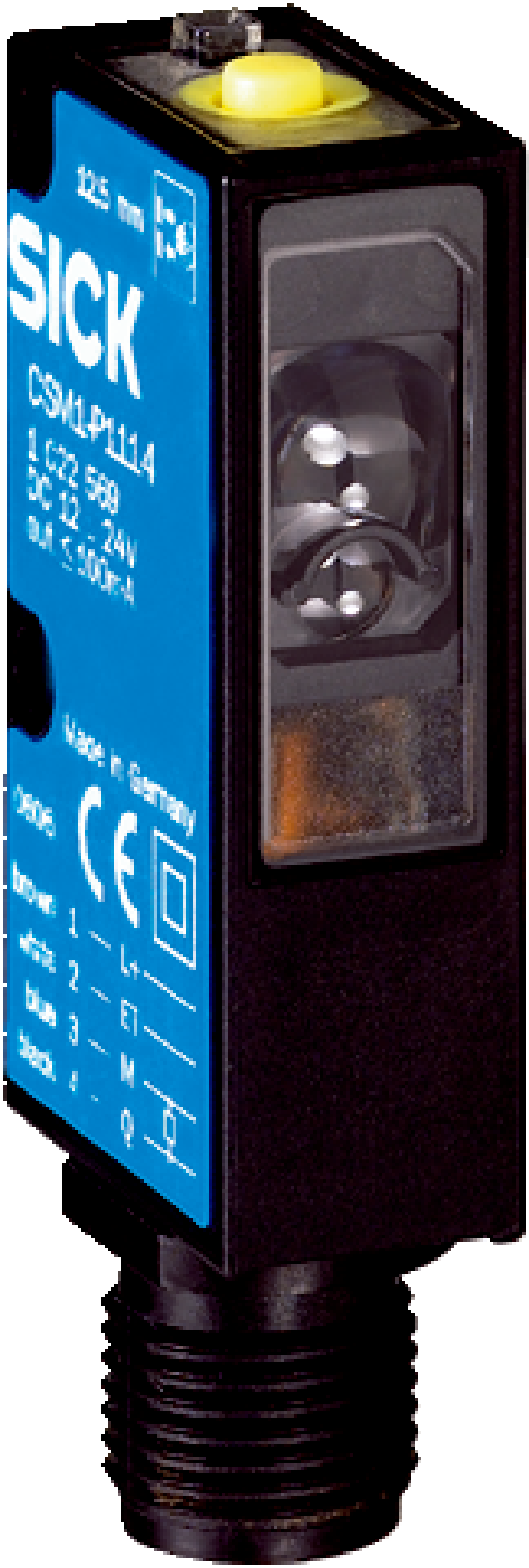

SICK 1022569 / CSM1-P1114 is an archive in the CSM1 family. Color sensors; Light source: LED; Housing design: Rectangular; Communication interface: -; Sensing distance: 12.5 mm; Switching output: PNP; Light spot size: 1.5 mm x 6.5 mm; Light spot direction: Vertical; Connection type Detail: Male connector M12, 4-pin; Output (channel): 1 color; Adjustment: Teach-in button.

Manufacturer

Sick

Part number

1022569

Product family

CSM1

Category

Archive

Technical details

Supply voltage: 12 V DC... 24 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 500 µs; Dimensions (W x H x D): 12 mm x 40 mm x 22 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: ABS; Ambient operating temperature: –10 °C... +55 °C; Weight: 11 g; Housing design: Rectangular; Light source: LED, RGB; Light spot size: 1.5 mm x 6.5 mm; Light spot direction: Vertical

Weight

0.011 kg

Dimensions

12 x 40 x 22
