1018214

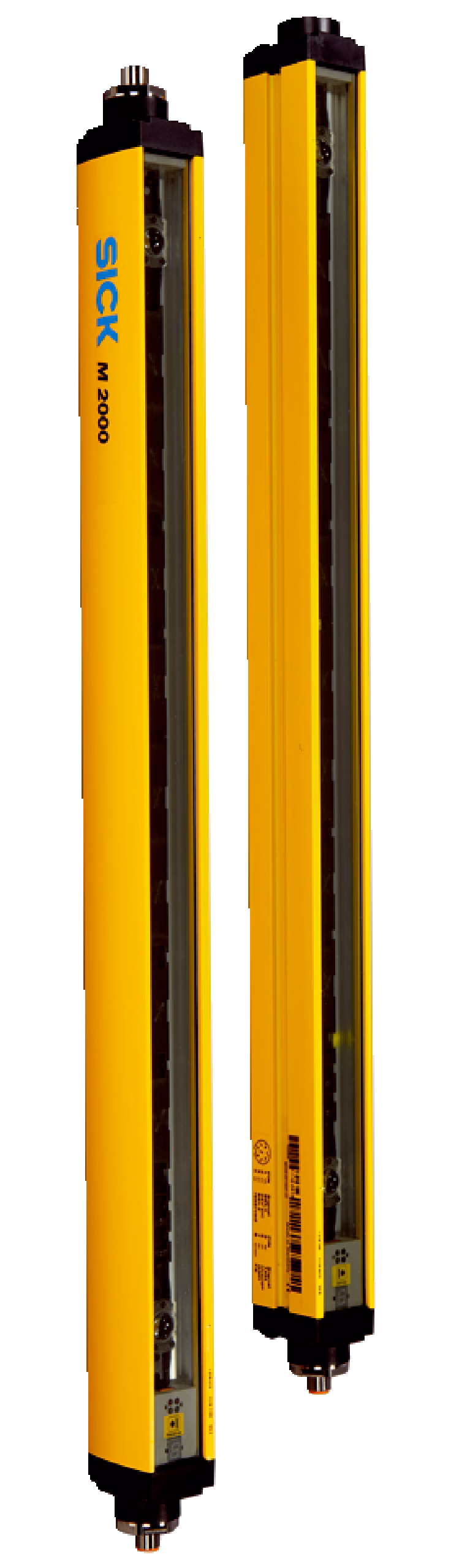

SICK 1018214 / M20S-03140A222 is an archive in the M2000 Cascadable family. Safety light-beam sensors; System part: Sender; Scanning range: 25 m; Number of beams: 3; Beam separation: 400 mm; Connection type: Male connector M12, 8-pin.

Manufacturer

Sick

Part number

1018214

Product family

M2000 Cascadable

Category

Archive

Technical details

Supply voltage VS: 24 V DC (19.2 V DC... 28.8 V DC); Dimensions: See dimensional drawing; Enclosure rating: IP65 (EN 60529); Type: Type 2 (IEC 61496-1); Safety integrity level: SIL 1 (IEC 61508); Category: Category 2 (EN ISO 13849); Test rate (internal test): 13 /s (EN ISO 13849); Maximum demand rate: 8 min⁻¹ (EN ISO 13849); Performance level: PL c (EN ISO 13849); PFHD (mean probability of a dangerous failure per hour): 6.6 x 10 (EN ISO 13849); TM (mission time): 20 years (EN ISO 13849); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Beam coding: ✔; Configurable scanning range: ✔
