1017982

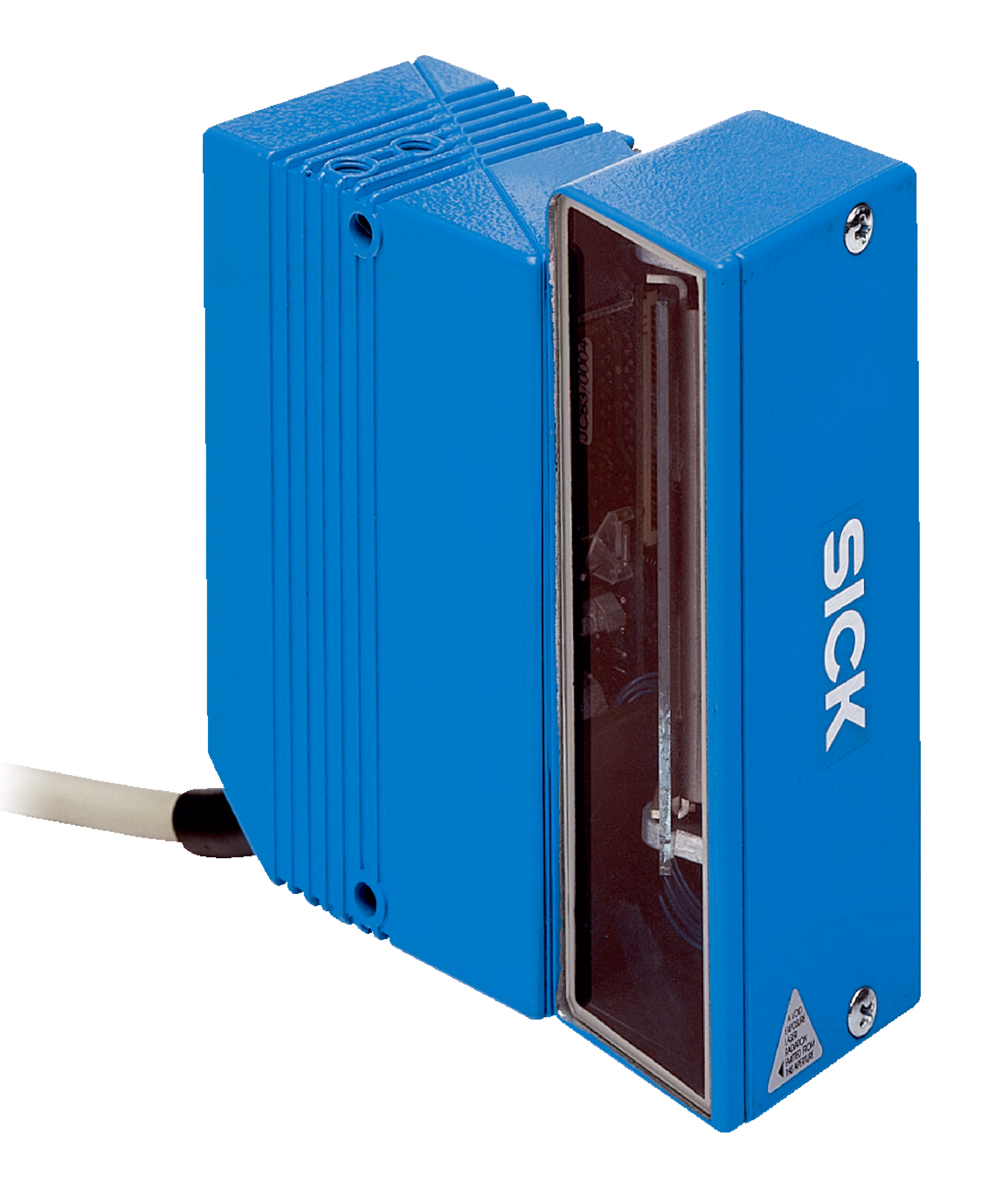

SICK 1017982 / CLV431-6010 is an archive in the CLV43x family. Fixed mount barcode scanners; Optical focus: Fixed focus; Max. reading distance: 340 mm; Code resolution: 0.25 mm... 0.5 mm; Enclosure rating: IP65.

Manufacturer

Sick

Part number

1017982

Product family

CLV43x

Category

Archive

Technical details

Code resolution: 0.25 mm... 0.5 mm; Supply voltage: 10 V DC... 30 V DC; Dimensions (L x W x H): 99.8 mm x 92.2 mm x 37.8 mm; Connection type: Standard; Enclosure rating: IP65 (EN 60529 (1991-10)); A1 (2002-02); Housing material: Die-cast zinc, does not contain paint wetting impairment substances; Ambient operating temperature: 0 °C... +40 °C; Weight: 620 g, with connecting cable; Version: Mid Range; Reading field: Oscillating mirror; Scanner design: Line scanner; Optical focus: Fixed focus; Light source: Visible red light (650 nm); Laser class: 2 (DIN EN 60825-1)

Weight

0.62 kg

Dimensions

99.8 x 92.2 x 37.8

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
