1016715

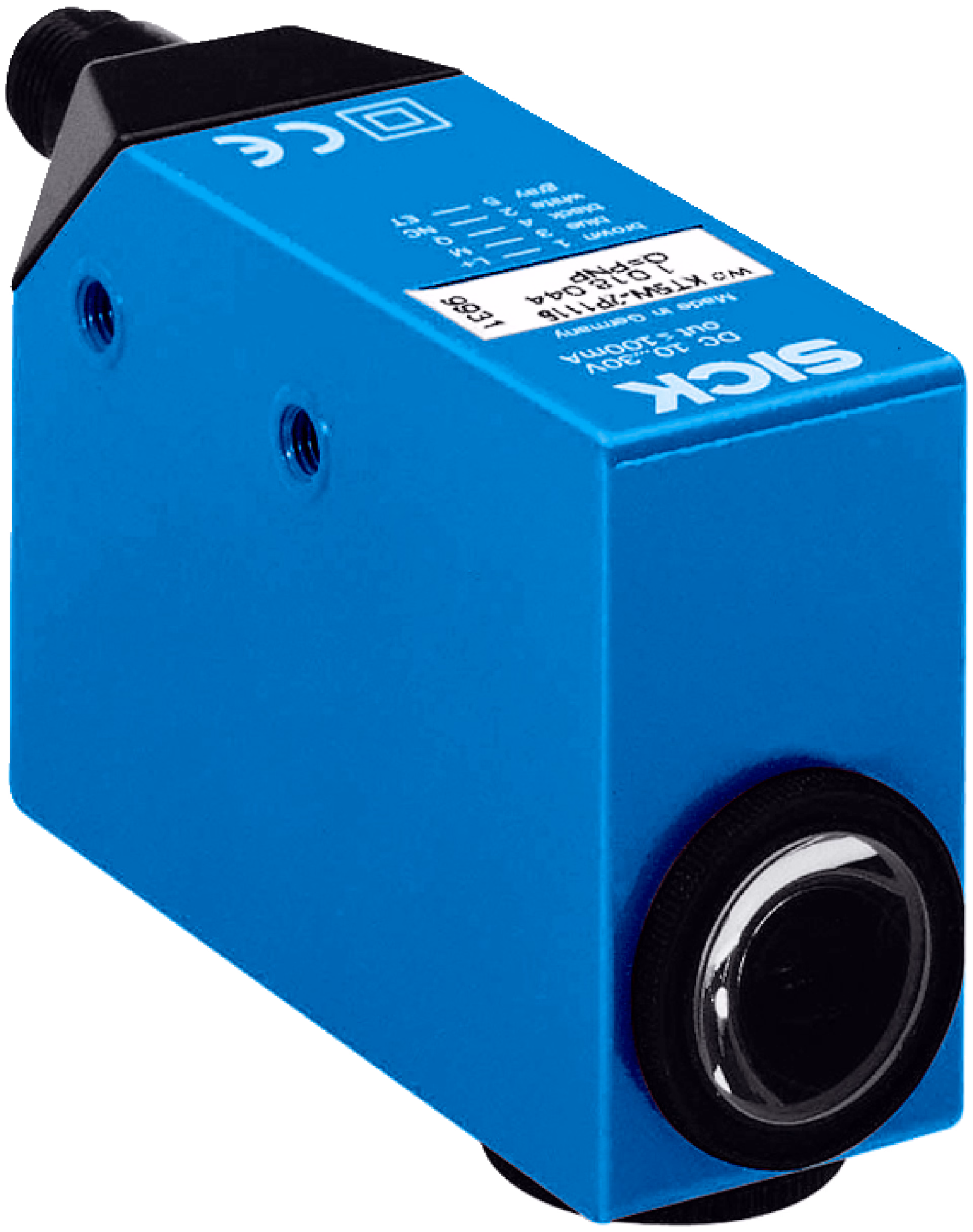

SICK 1016715 / KT5W-2P1213 is an archive in the KT5 family. Contrast sensors; Light source: LED; Sensing distance: 20 mm; Switching output: PNP; Light spot size: 1.5 mm x 5.5 mm; Light spot direction: Vertical; Light emission: Long and short side of housing, exchangeable; Connection type Detail: Plug, M12, 5-pin; Adjustment: Teach-in button; Teach-in mode: Teach-in dynamic; Housing material: Metal.

Manufacturer

Sick

Part number

1016715

Product family

KT5

Category

Archive

Technical details

Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 50 µs; Dimensions (W x H x D): 30.4 mm x 53 mm x 80 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP67; Housing material: Zinc diecast; Ambient operating temperature: –10 °C... +55 °C; Weight: 400 g; Housing design: Middle; Light source: LED, RGB; Light emission: Long and short side of housing, exchangeable; Light spot size: 1.5 mm x 5.5 mm

Weight

0.4 kg

Dimensions

30.4 x 53 x 80
