1016235

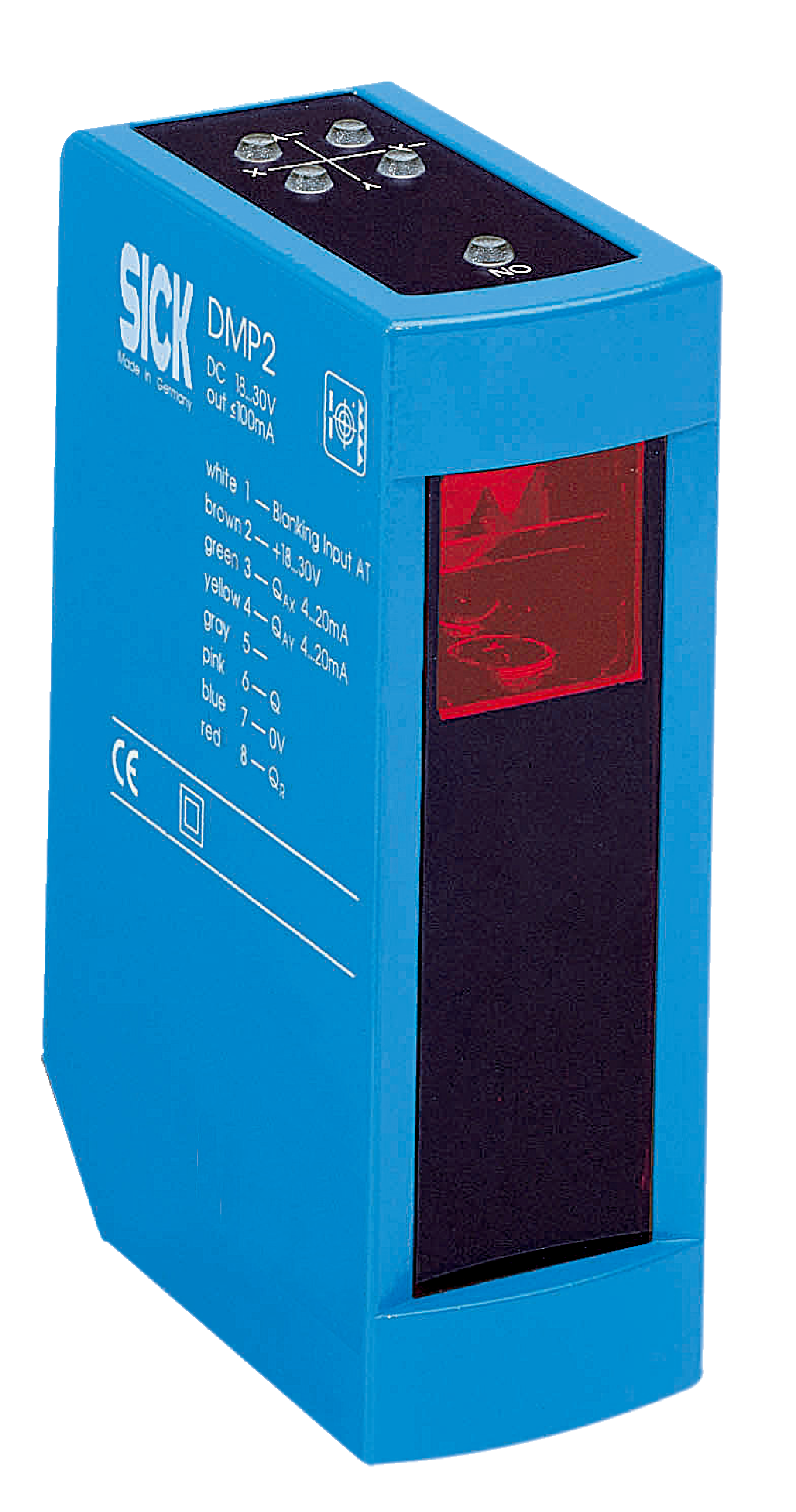

SICK 1016235 – DMP2-P11111 Archive
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
SICK 1016235 / DMP2-P11111 is an archive in the DMP2 family. Laser distance sensors; Light source: LED, red; Switching frequency: 250 Hz; Operating height: 200 mm... 500 mm, PL22500 mm... 1,200 mm, PL50A500 mm... 2,000 mm, Reflector PL80A.
- Manufacturer
- Sick
- Part number
- 1016235
- Product family
- DMP2
- Category
- Archive
- Technical details
- Supply voltage UB: DC 18 V... 30 V; Repeatability: 0.15 mm; Response time: 3 ms; Connection type: Male connector, M12, 8-pin; Enclosure rating: IP67; Operating height: 200 mm... 500 mm (PL22); 500 mm... 1,200 mm (PL50A); 500 mm... 2,000 mm (Reflector PL80A); Target: Reflector; Switching frequency: 250 Hz; Light source: LED, red; Sensing angle: ± 10°; Operating mode: Choice of continuous or triggered; Blanking input AT: Blanked (triggered): PNP: > 18 V... > Uv max.; Free running: PNP:; Current consumption: < 250 mA; Ripple: < 5 Vpp
